Adjustable Pitch Fan Assembly 34′ & 36′ Diameter
Blade Counts from 6 to 14
Individually balanced blades can be replaced – matched sets are not required
Applications: Packaged Cooling Towers, Induced Draft Cooling Towers and Forced Draft Cooling Towers

Blades: Fiberglass reinforced vinyl ester
Seal Disc: Fiberglass Reinforced Polyester
Hub Spool: Coal Tar Epoxy Coating
Blade Clamps: Powder Epoxy Coated Ductile Iron (Standard)
Plates: Steel, Galvanized
Fasteners: Steel, HDG & 316 SS Opt., Complete Fan with 316 SS (Option 1), Complete Fan with K500 Monel (Option 2)
Bushing: Malleable Iron

This Fan Assembly series covers model numbers:

APT-34H7-6
APT-34H7-7
APT-34H7-8
APT-34H7-9
APT-34H7-10
APT-34H7-11
APT-34H7-12
APT-34H7-13
APT-34H7-14
APT-36H7-6
APT-36H7-7
APT-36H7-8
APT-36H7-9
APT-36H7-10
APT-36H7-11
APT-36H7-12
APT-36H7-13
APT-36H7-14

Manual

Product description

Adjustable Pitch Fan Assembly 34′ & 36′ Diameter. Blade Counts from 6 to 14.

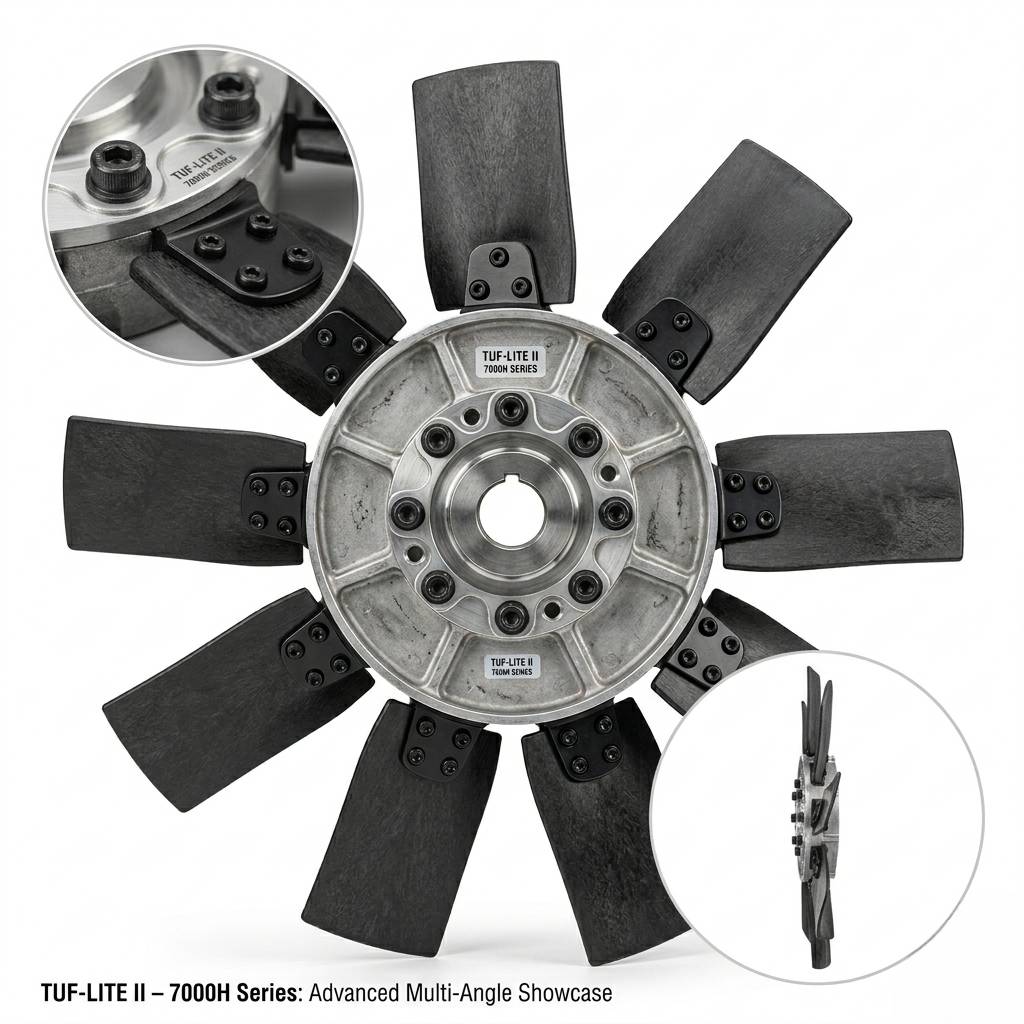

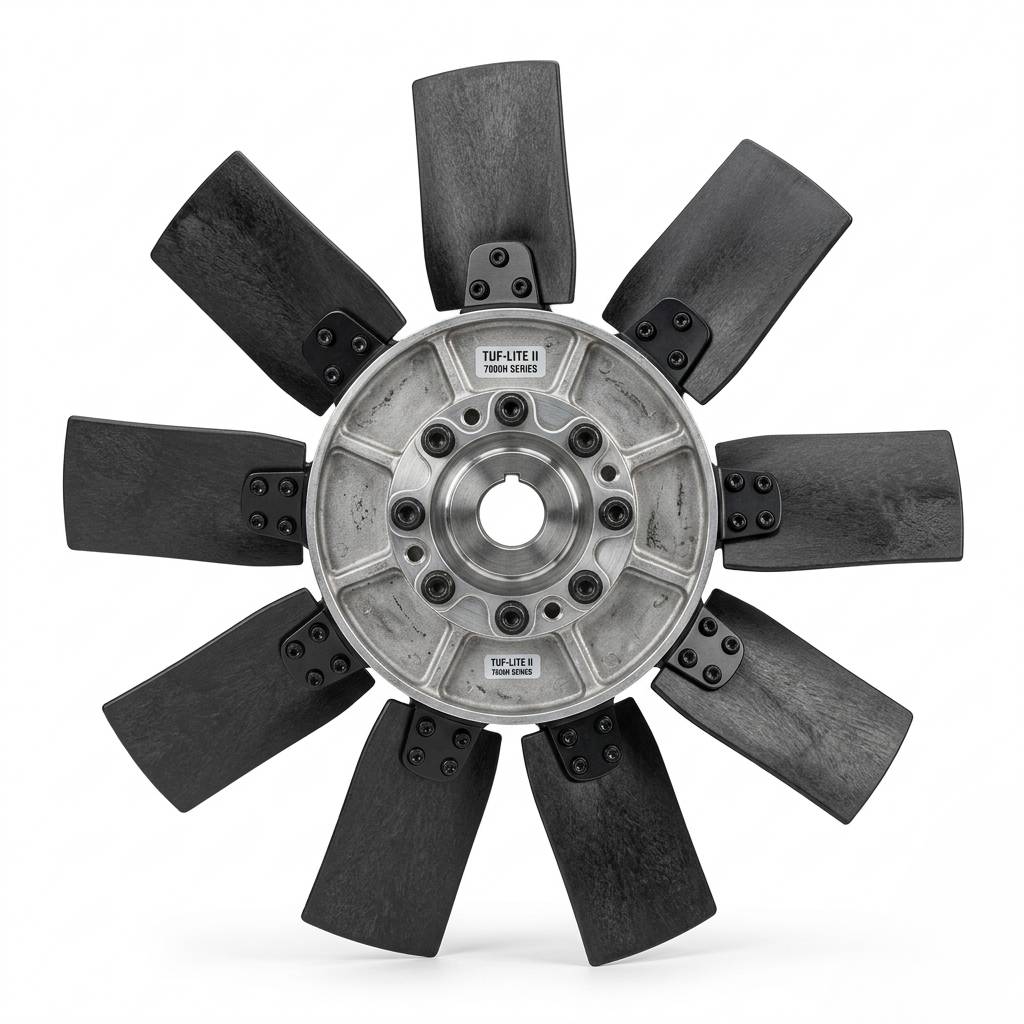

Hudson Tuf-Lite II 7000H Series Hub (White, previously Blue) fan blades are made from fiberglass reinforced vinyl-ester resin having a very high strength-to-weight ratio and superior ultra-violet and corrosion resistance. An elastomeric blade/holder joint cover prevents moisture from entering the blade.

Additional information

brand	Hudson
diameters	34 ft, 36 ft
number-of-blades	10, 11, 12, 13, 14, 6, 7, 8, 9
