TUF-LITE II – 5000H Series Hub Fan Assemblies

Hudson Tuf-Lite II 5000H Series Hub Cooling Tower Fans. Adjustable Pitch Fan Assembly 22' Through 30' Diameter. Blade Counts from 6 to 20.

  • Adjustable Pitch Fan Assembly 22′ Through 30′ Diameter
  • Blade Counts from 6 to 20
  • Individually balanced blades can be replaced – matched sets are not required
  • Applications: Packaged Cooling Towers, Induced Draft Cooling Towers and Forced Draft Cooling Towers

Description

Adjustable Pitch Fan Assembly 22′ Through 30′ Diameter. Blade Counts from 6 to 20.

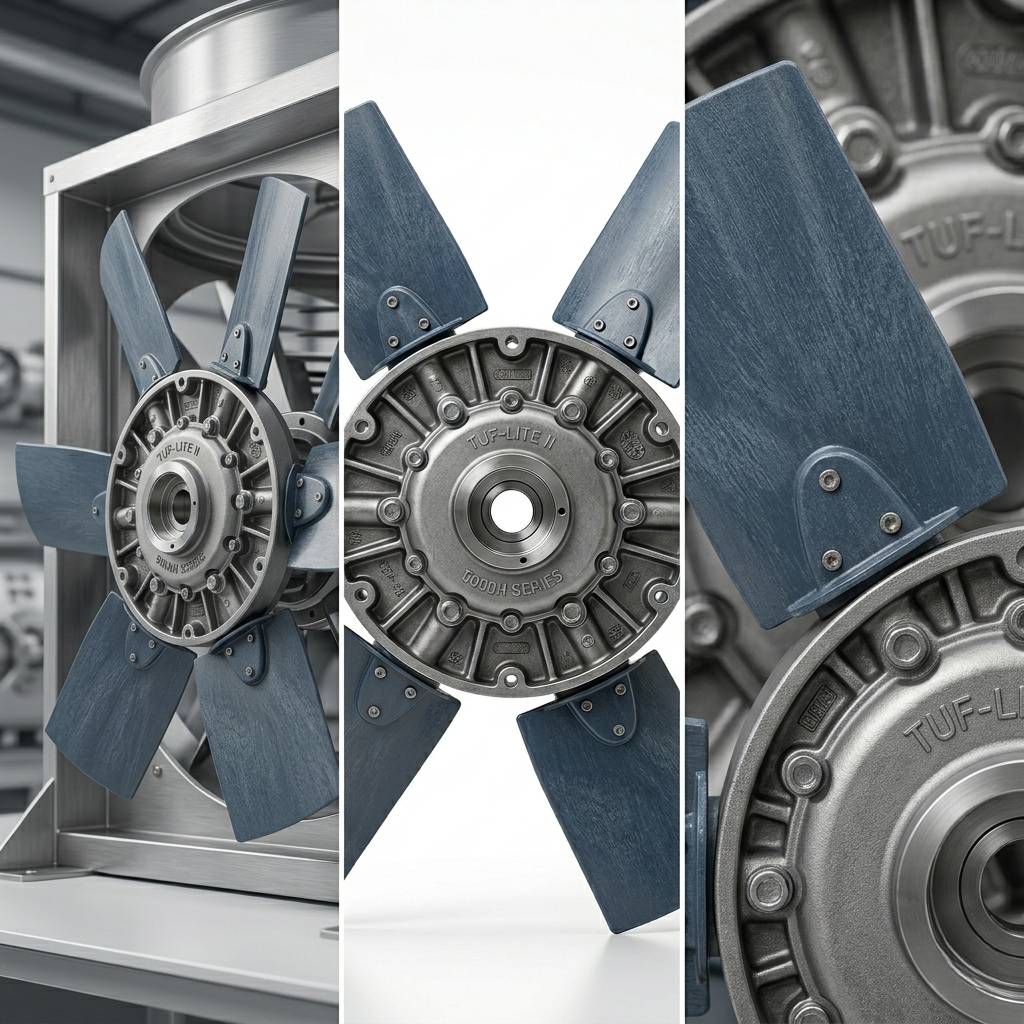

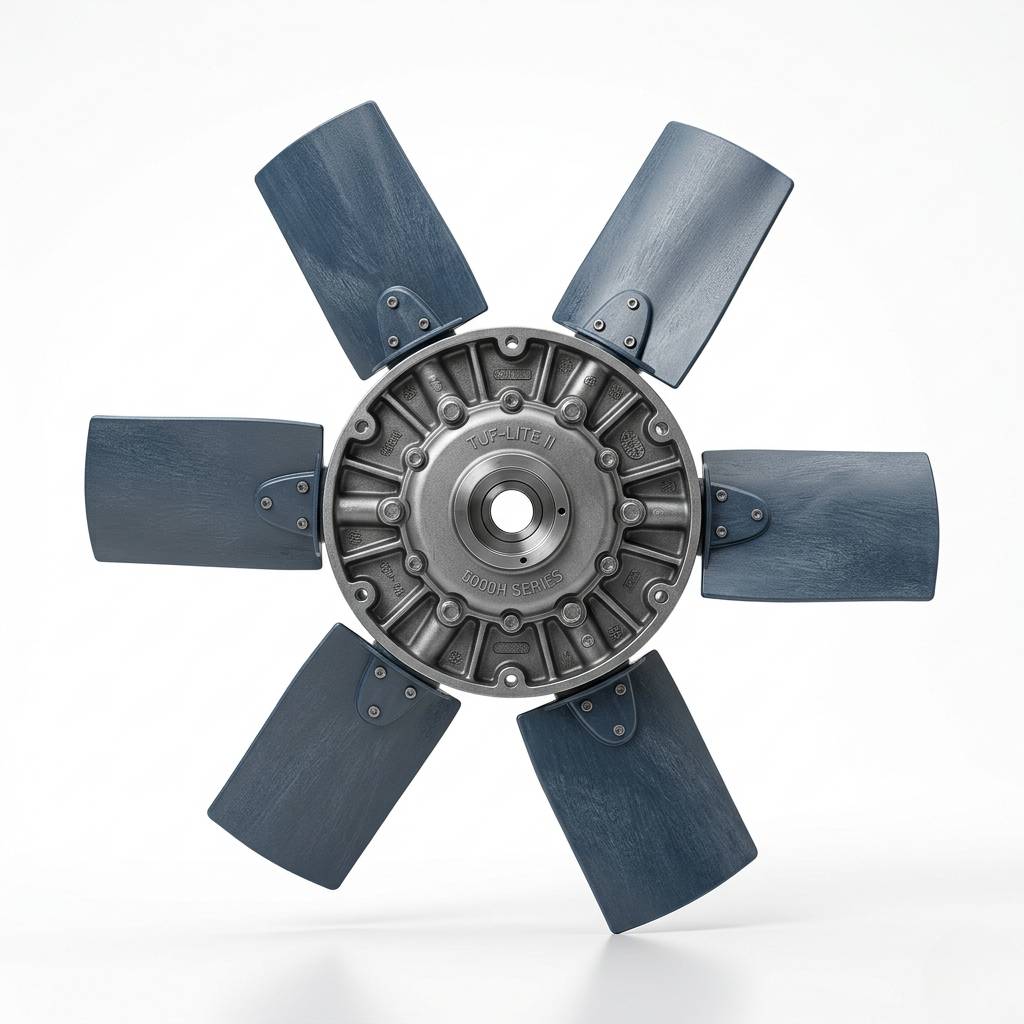

Hudson Tuf-Lite II 5000H Series Hub (White, previously Blue) fan blades are made from fiberglass reinforced vinyl-ester resin having a very high strength-to-weight ratio and superior ultra-violet and corrosion resistance. An elastomeric blade/holder joint cover prevents moisture from entering the blade.

  • Blades: Fiberglass reinforced vinyl ester
  • Seal Disc: Fiberglass Reinforced Polyester
  • Hub Spool: Ductile Iron, Zinc Rich Coating
  • Blade Clamps: Un-painted Aluminum (Standard), Epoxy Coated Aluminum (Option 1), Epoxy Coated Ductile Iron (Option 2), Machined Stainless Steel (Option 3)
  • Plates: Steel, Galvanized
  • Fasteners: Steel, Mech. Galvanized & 316 SS Opt., Complete Fan with 316 SS (Option 1), Complete Fan with K500 Monel (Option 2)
  • Bushing: Malleable Iron

This Fan Assembly series covers model numbers:

  • APT-22H-6
  • APT-22H-7
  • APT-22H-8
  • APT-22H-9
  • APT-22H-10
  • APT-22H-11
  • APT-22H-12
  • APT-24H-6
  • APT-24H-7
  • APT-24H-8
  • APT-24H-9
  • APT-24H-10
  • APT-24H-11
  • APT-24H-12
  • APT-26H-6
  • APT-26H-7
  • APT-26H-8
  • APT-26H-9
  • APT-26H-11
  • APT-26H-12
  • APT-28H-6
  • APT-28H-7
  • APT-28H-8
  • APT-28H-9
  • APT-28H-10
  • APT-28H-11
  • APT-28H-12
  • APT-30H-6
  • APT-30H-7
  • APT-30H-8
  • APT-30H-9
  • APT-30H-10
  • APT-30H-11
  • APT-30H-12
  • APT-30H-13
  • APT-30H-14
  • APT-30H-15
  • APT-30H-16
  • APT-30H-17
  • APT-30H-18
  • APT-30H-19
  • APT-30H-20

Additional information

brand

Hudson

number-of-blades

10, 11, 12, 6, 7, 8, 9

diameters

22 ft, 24 ft, 26 ft, 28 ft
