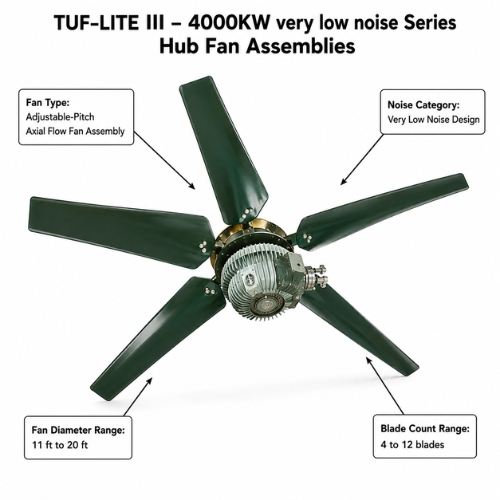

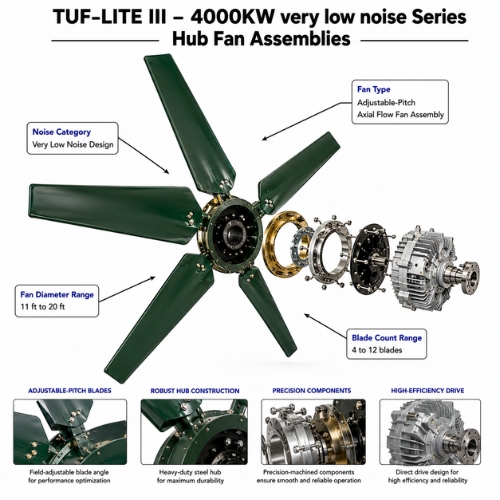

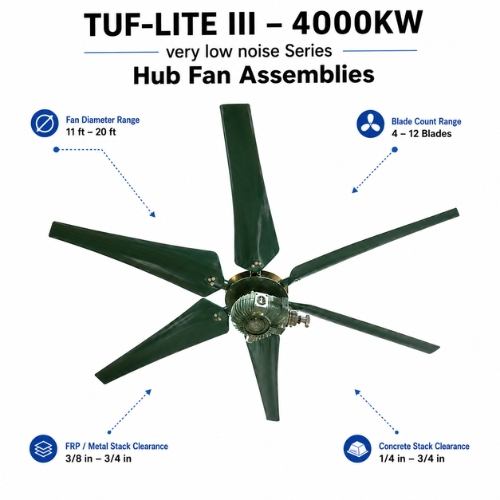

TUF-LITE III – 4000KW Very Low Noise Series Hub Fan Assemblies

Hudson Tuf-Lite III 4000KW Series Very Low Noise Cooling Tower Fans. Adjustable Pitch Fan Assembly 11′ Through 20′ Diameter. Blade Counts from 4 to 12.

  • Adjustable Pitch Fan Assembly 11′ Through 20′ Diameter
  • Blade Counts from 4 to 12
  • 4000KW Series fans are designed for low noise applications
  • Individually balanced blades can be replaced – matched sets are not required
  • Applications: Packaged Cooling Towers, Induced Draft Cooling Towers and Forced Draft Cooling Towers
  • Blades: Fiberglass reinforced vinyl ester or epoxy
  • Seal Disc: Fiberglass Reinforced Polyester
  • Hub Spool: Ductile Iron, Zinc Rich Coating
  • Blade Clamps: Un-painted Aluminum (Standard), Epoxy Coated Aluminum (Option 1), Epoxy Coated Ductile Iron (Option 2)
  • Plates: Steel, Galvanized
  • Fasteners: Steel, Mech. Galvanized & 316 SS Opt., Complete Fan with 316 SS (Option 1), Complete Fan with K500 Monel (Option 2)
  • Bushing: Malleable Iron

This Fan Assembly series covers model numbers:

  • APT-11KW-4
  • APT-11KW-5
  • APT-11KW-6
  • APT-11KW-7
  • APT-11KW-8
  • APT-11KW-9
  • APT-11KW-10
  • APT-12KW-4
  • APT-12KW-5
  • APT-12KW-6
  • APT-12KW-7
  • APT-12KW-8
  • APT-12KW-9
  • APT-12KW-10
  • APT-13KW-4
  • APT-13KW-5
  • APT-13KW-6
  • APT-13KW-7
  • APT-13KW-8
  • APT-13KW-9
  • APT-13KW-10
  • APT-14KW-4
  • APT-14KW-5
  • APT-14KW-6
  • APT-14KW-7
  • APT-14KW-8
  • APT-14KW-9
  • APT-14KW-10
  • APT-15KW-4
  • APT-15KW-5
  • APT-15KW-6
  • APT-15KW-7
  • APT-15KW-8
  • APT-15KW-9
  • APT-15KW-10
  • APT-16KW-4
  • APT-16KW-5
  • APT-16KW-6
  • APT-16KW-7
  • APT-16KW-8
  • APT-16KW-9
  • APT-16KW-10
  • APT-18KW-4
  • APT-18KW-5
  • APT-18KW-6
  • APT-18KW-7
  • APT-18KW-8
  • APT-18KW-9
  • APT-18KW-10
  • APT-20KW-4
  • APT-20KW-5
  • APT-20KW-6
  • APT-20KW-7
  • APT-20KW-8
  • APT-20KW-9
  • APT-20KW-10
  • APT-20KW-11
  • APT-20KW-12
  • Manual

Product description

Adjustable Pitch Fan Assembly 11′ Through 20′ Diameter. Blade Counts from 4 to 12.

Hudson Tuf-Lite III 4000KW Very Low Noise Series Hub (White, previously Teal Green) fan blades are of single piece fiberglass reinforced plastic (FRP) construction optimized for performance, reliability, noise, and cost effectiveness. Tuf-Lite III fan blades are constructed of light weight, corrosion resistant, fiberglass reinforced vinyl-ester resin, with materials, thickness, and processes determined from finite element analysis modeling. Tuf-Edge leading edge erosion and UV protection is a standard with this blade.
