TUF-LITE III - 3000K Series Hub Fan Assemblies

TUF-LITE III - 3000K Series Hub Fan Assemblies

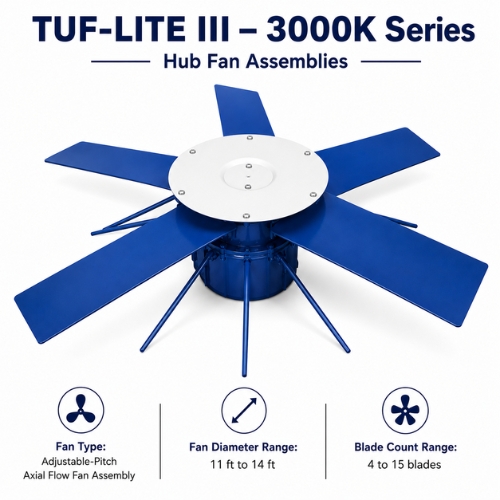

Hudson Tuf-Lite III 3000K Series Hub Cooling Tower Fans. Adjustable Pitch Fan Assembly 11′ Through 14′ Diameter. Blade Counts from 4 to 15.

Contact Us
  • Adjustable Pitch Fan Assembly 11′ Through 14′ Diameter
  • Blade Counts from 4 to 15

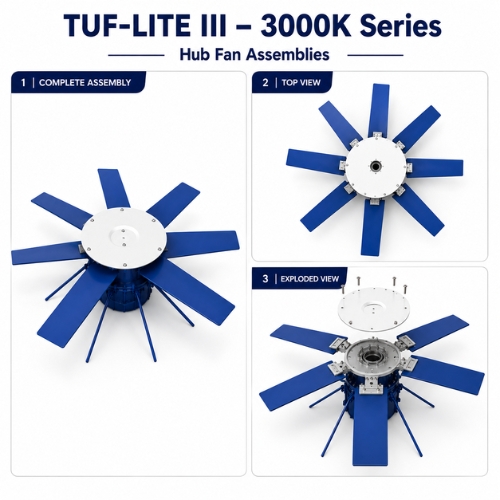

  • Hubs are identical to the Tuf-Lite II 3000H family – K blades can be used to replace H blades if all blades are changed at one time
  • Applications: Packaged Cooling Towers, Induced Draft Cooling Towers and Forced Draft Cooling Towers

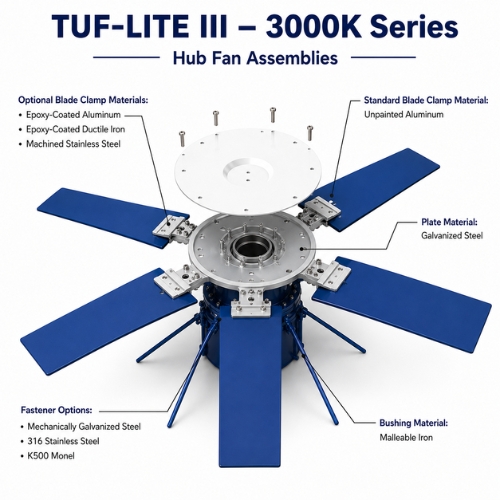

  • Blades: Fiberglass reinforced vinyl ester
  • Seal Disc: Fiberglass Reinforced Polyester
  • Hub Spool: Ductile Iron, Zinc Rich Coating
  • Blade Clamps: Un-painted Aluminum (Standard), Epoxy Coated Aluminum (Option 1), Epoxy Coated Ductile Iron (Option 2), Machined Stainless Steel (Option 3)
  • Plates: Steel, Galvanized
  • Fasteners: Steel, Mech. Galvanized & 316 SS Opt., Complete Fan with 316 SS (Option 1), Complete Fan with K500 Monel (Option 2)
  • Bushing: Malleable Iron

This Fan Assembly series covers model numbers:

  • APT-11K-4
  • APT-11K-5
  • APT-11K-6
  • APT-11K-7
  • APT-11K-8
  • APT-11K-9
  • APT-12K-4
  • APT-12K-5
  • APT-12K-6
  • APT-12K-7
  • APT-12K-8
  • APT-12K-9
  • APT-13K-4
  • APT-13K-5
  • APT-13K-6
  • APT-13K-7
  • APT-13K-8
  • APT-13K-9
  • APT-14K-4
  • APT-14K-5
  • APT-14K-6
  • APT-14K-7
  • APT-14K-8
  • APT-14K-9

Product description

Adjustable Pitch Fan Assembly 11′ Through 14′ Diameter. Blade Counts from 4 to 15.

Hudson Tuf-Lite III 3000K Series Hub (White) fan blades are of single piece fiberglass reinforced plastic (FRP) construction optimized for performance, reliability, noise, and cost effectiveness. Tuf-Lite III fan blades are constructed of light weight, corrosion resistant, fiberglass reinforced vinyl-ester resin, with materials, thickness, and processes determined from finite element analysis modeling. Tuf-Edge leading edge erosion and UV protection is a standard with this blade.

Additional information

brand

diameters

, , ,

number-of-blades

, , , , ,
