These nozzles are built to handle varying industrial conditions while maintaining consistent spray performance.
- Cross-corrugated flute design maximizes heat-transfer surface area
- Intersecting airflow channels improve air-water mixing efficiency
- Superior water redistribution prevents dry spots across the fill surface
- Thin water film formation improves thermal dissipation performance
- High void volume design maintains strong airflow with low restriction
- Integrated drift eliminator and louver options reduce water drift loss
- Compact thermal design supports smaller cooling tower footprints
- Reinforced sheet edges improve structural durability under high water loading
- UV-stabilized polymer construction resists weathering and chemical attack
- Flame-retardant material formulation improves operational safety
It is engineered for HVAC and industrial cooling towers operating with clean, treated process water.

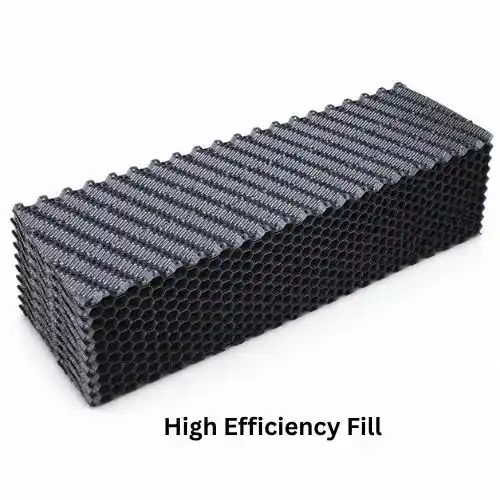

- Product Type: High Efficiency Cross Corrugated Film Fill
- Tower Compatibility: HVAC and Industrial Cooling Towers
- Water Quality Requirement: Total Suspended Solids (TSS) below 25 ppm

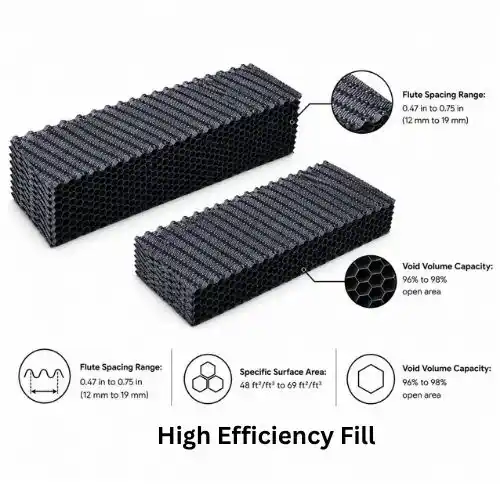

- Flute Spacing Range: 0.47 in to 0.75 in (12 mm to 19 mm)
- Specific Surface Area: 48 ft²/ft³ to 69 ft²/ft³
- Void Volume Capacity: 96% to 98% open area
- Material Options: PVC, High-Temperature PVC (HPVC), Polypropylene (PP)
- PVC Temperature Limit: Up to 140°F (60°C)

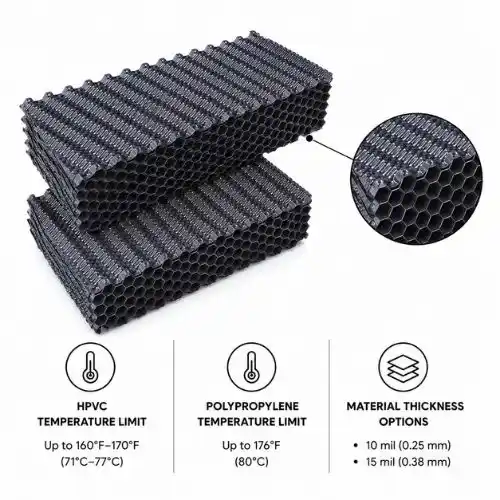

- HPVC Temperature Limit: Up to 160°F–170°F (71°C–77°C)
- Polypropylene Temperature Limit: Up to 176°F (80°C)
- Material Thickness Options:
- 10 mil (0.25 mm)
- 15 mil (0.38 mm)
- Material Compliance: CTI Standard 136 compliant
- Fire Protection: Flame Spread Index below 25 (ASTM E84)
