These nozzles are built to handle varying industrial conditions while maintaining consistent spray performance.
- Hybrid flute design combines high thermal efficiency with low fouling performance
- Steep vertical channels improve water velocity and reduce sediment buildup
- Cross-lateral geometry improves water redistribution across the fill surface
- High-shear water flow helps minimize slime, scale, and biofilm formation
- Low airside pressure drop reduces fan energy consumption
- Open internal structure improves airflow and reduces clogging risk
- Glue-free mechanical bond options improve module rigidity and durability
- Precision-trimmed edges improve module alignment and water distribution
- UV-stabilized polymer construction resists chemical attack and outdoor degradation
- Reduces structural loading caused by excessive debris accumulation
It is engineered for industrial cooling tower systems operating with moderately contaminated process water.

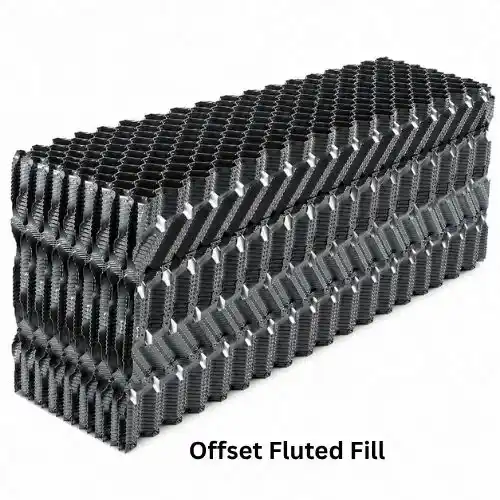

- Product Type: Offset Fluted Cooling Tower Fill
- Tower Compatibility: Counterflow Cooling Towers
- Water Quality Tolerance: Moderate suspended solids and contaminated process water

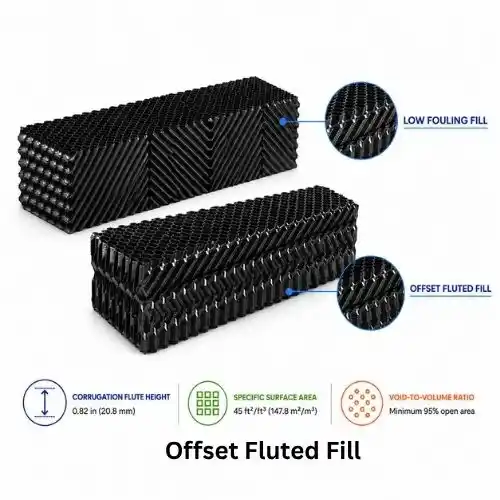

- Corrugation Flute Height: 0.82 in (20.8 mm)
- Specific Surface Area: 45 ft²/ft³ (147.8 m²/m³)
- Void-to-Volume Ratio: Minimum 95% open area
- Material Thickness Options:
- 10 mil (0.25 mm)
- 15 mil (0.38 mm)
- Material Options: PVC, High-Temperature PVC (HPVC), Polypropylene (PP)

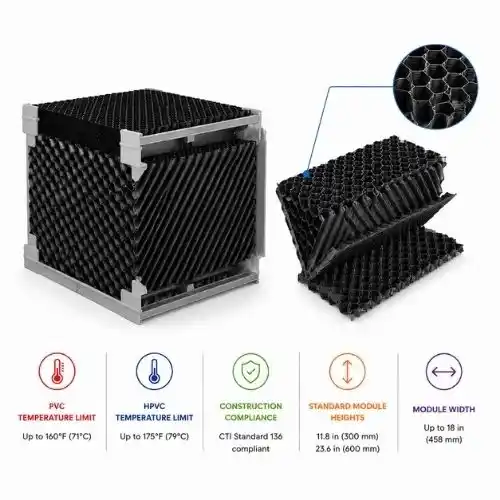

- PVC Temperature Limit: Up to 160°F (71°C)
- HPVC Temperature Limit: Up to 175°F (79°C)
- Construction Compliance: CTI Standard 136 compliant
- Standard Module Heights: 11.8 in (300 mm) and 23.6 in (600 mm)
- Module Width: Up to 18 in (458 mm)
- Module Length Range: 12 in to 120 in (305 mm to 3,048 mm)
