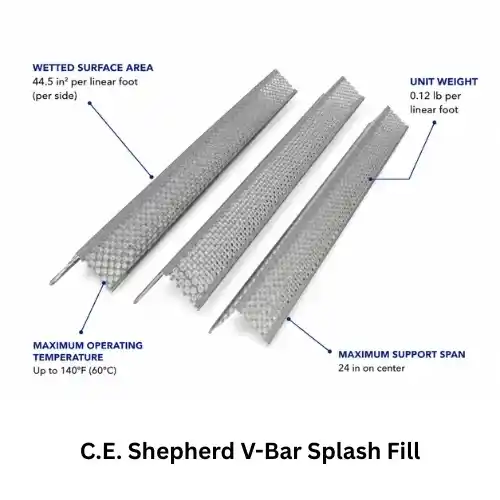

C.E. Shepherd V-Bar Splash Fill
C.E. Shepherd V-Bar Splash Fill
C.E. Shepherd V-Bar Splash Fill

C.E. Shepherd V-Bar Splash Fill

C.E. Shepherd V-Bar Splash Fill is a heavy-duty cooling tower heat-transfer media designed for crossflow cooling towers operating with dirty, high-fouling, or poor-quality process water. Its inverted V-shaped splash bar design continuously breaks falling water into fine droplets, improving evaporative cooling performance while resisting clogging, scale buildup, and biological fouling in harsh industrial environments.

  • Crossflow cooling towers
  • Industrial process cooling systems
  • Petrochemical processing plants
  • Steel and mining operations
  • Wastewater treatment facilities
  • High-fouling cooling tower environments
Contact Us
  • Inverted V-bar profile improves water breakup and evaporative cooling efficiency
  • Perforated surface pattern increases droplet fragmentation and airflow contact
  • Open splash-fill design resists clogging from scale, sludge, and suspended solids
  • Dual mounting orientation supports parallel or perpendicular airflow installation
  • Integrated center stiffener improves structural strength under heavy water loads
  • Extruded PVC construction resists corrosion, UV exposure, and chemical attack
  • Polypropylene locking clips prevent movement and vibration wear during operation
  • Wire mesh support system improves installation stability and load distribution
  • Heavy-duty construction withstands ice buildup and continuous industrial operation
  • Flexible profile lengths simplify cooling tower retrofit and replacement projects

It is engineered for industrial crossflow cooling towers operating under high-fouling water conditions.

  • Product Type: V-Bar Splash Fill Media
  • Material Composition: Extruded Rigid PVC
  • UV Protection: Carbon Black or Titanium Dioxide inhibitors
  • CTI Compliance: CTI Bulletin STD-136 compliant
  • Profile Thickness:
    • Standard Duty: 50 mil (±0.005 in)
    • Heavy Duty: 80 mil (±0.010 in)
  • Nominal Width: 3.75 in (Nominal 4 in)
  • Nominal Height: 1.75 in
  • Wetted Surface Area: 44.5 in² per linear foot (per side)
  • Unit Weight: 0.12 lb per linear foot
  • Maximum Operating Temperature: Up to 140°F (60°C)
  • Maximum Support Span: 24 in on center
  • Installation Method: Wire mesh grid with polypropylene locking clips
  • Orientation Options: Parallel or perpendicular airflow installation
  • Profile Length: Custom project-specific lengths available

Sheperd V-Bar Brochure & Specs
