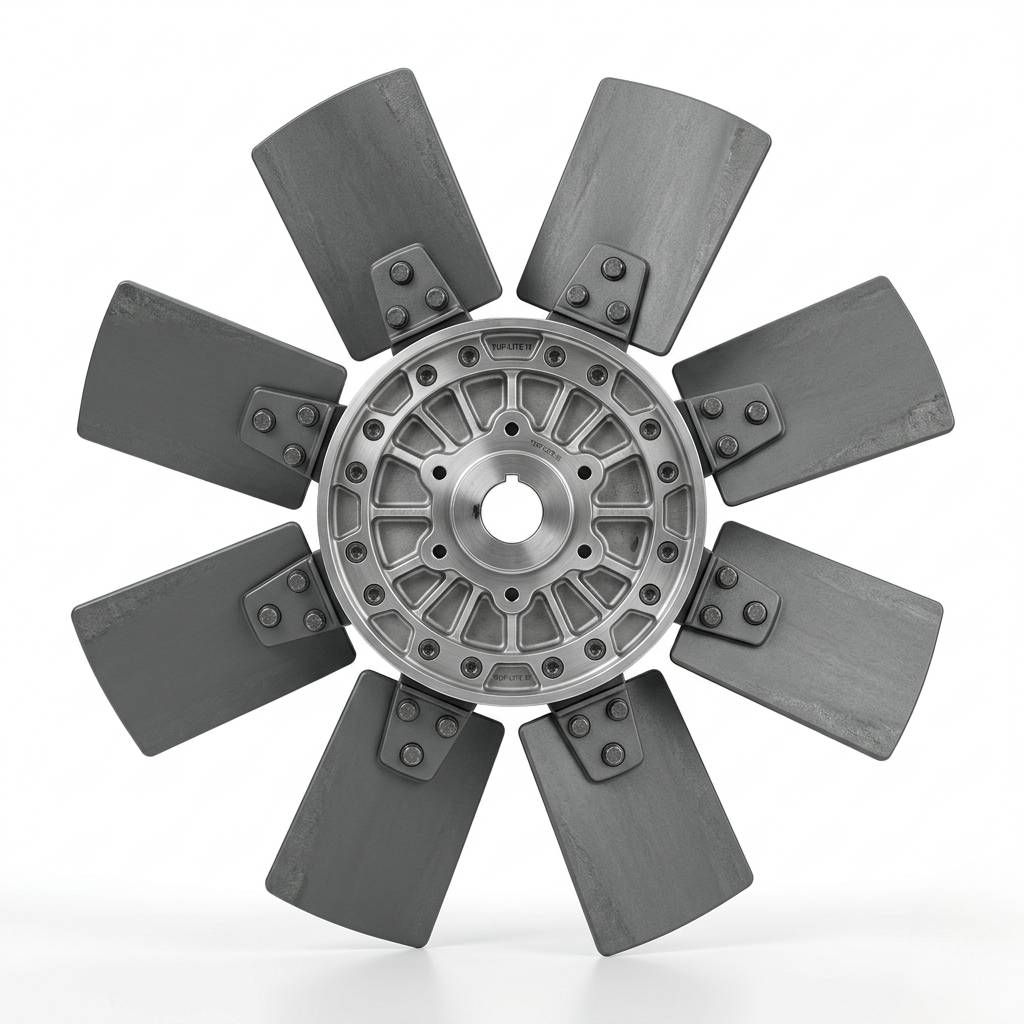

Hudson Tuf-Lite III 6000MK Series Hub Fan Assemblies. Ten Meter Adjustable Pitch Fan Assembly 32.8′ or 10 Meter Diameter. Blade Counts from 6 to 20.

Contact Us
  • Adjustable Pitch Fan Assembly 32.8′ or 10 Meter Diameter
  • Blade Counts from 6 to 20
  • Individually balanced blades can be replaced – matched sets are not required
  • Applications: Induced Draft Cooling Towers and Forced Draft Cooling Towers
  • Blades: Fiberglass reinforced vinyl ester or epoxy
  • Seal Disc: Fiberglass Reinforced Polyester

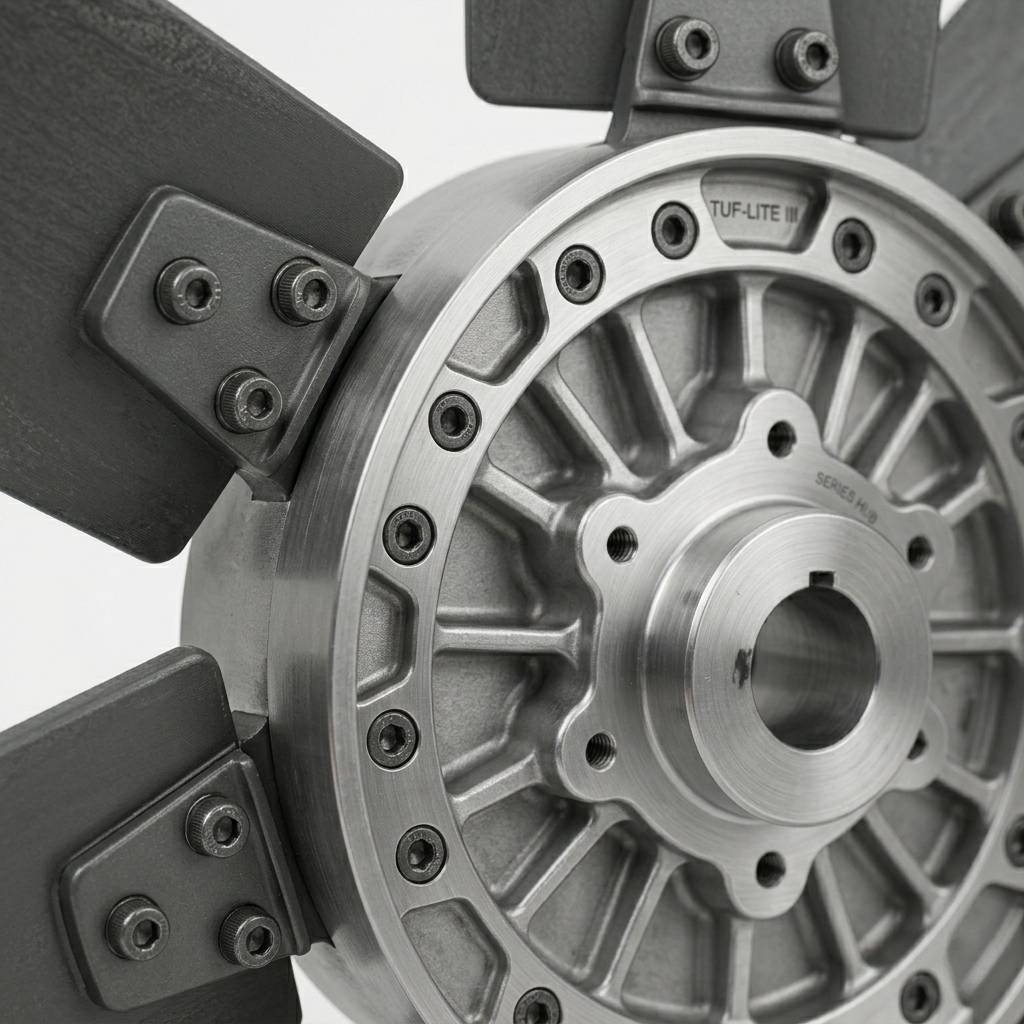

  • Hub Spool: Ductile Iron, Zinc Rich Coating
  • Blade Clamps: Powder Epoxy Coated Die Cast Aluminum (Standard), Powder Epoxy Coated Ductile Iron (Option 1), Coal Tar Epoxy Coated Ductile Iron (Option 2)
  • Plates: Steel, Galvanized
  • Fasteners: Steel, Mech. Galvanized & 316 SS Opt., Complete Fan with 316 SS (Option 1), Complete Fan with K500 Monel (Option 2)
  • Bushing: Malleable Iron

This Fan Assembly series covers model numbers:

  • APT-32.8K-6
  • APT-32.8K-7
  • APT-32.8K-8
  • APT-32.8K-9
  • APT-32.8K-10
  • APT-32.8K-11
  • APT-32.8K-12
  • APT-32.8K-13
  • APT-32.8K-14
  • APT-32.8K-15
  • APT-32.8K-16
  • APT-32.8K-17
  • APT-32.8K-18
  • APT-32.8K-19
  • APT-32.8K-20
  • Manual

Product description

Adjustable Pitch Fan Assembly 32.8′ or 10 Meter Diameter. Blade Counts from 6 to 20.

Hudson Tuf-Lite III 6000MK Series fan blades are of single piece fiberglass reinforced plastic (FRP) construction optimized for performance, reliability, noise, and cost effectiveness. Tuf-Lite III fan blades are constructed of light weight, corrosion resistant, fiberglass reinforced vinyl-ester resin, with materials, thickness, and processes determined from finite element analysis modeling. Tuf-Edge leading edge erosion and UV protection is a standard with this blade.
