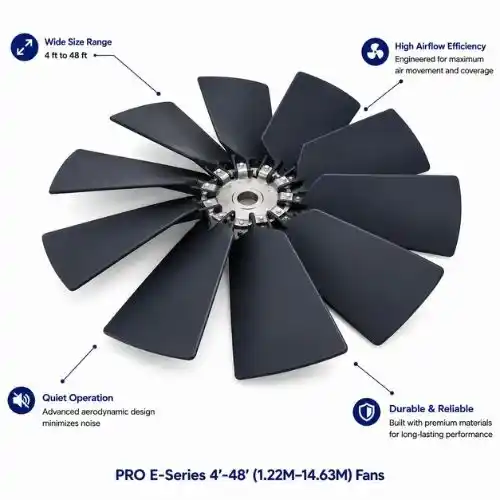

PRO E-Series 4′-48′ (1.22M-14.63M) Fans

The Howden E-Series cooling tower fans are a highly versatile that can perform in a wide range of cooling tower environments where stress on the fan may be a consideration. The E-Series is a low-vibration fan, chemically resistant with sustainability in harsh environments.

Standard Features Include:

  • Adaptable design – the E-Series fan rotates clockwise in either the horizontal or vertical plane
  • Operates from 20ºC to 65ºC – the E-Series fan works in hot and cool industrial environments
  • Polyurethane-coated steel hub – the E-Series fan also has aluminum blade supports and stainless steel U-bolts, nuts and washers

Optional Features Include:

  • Upgraded Leading Edge blade protection – we can better protect the blade for use in wet cooling applications
  • Upgraded materials – we can upgrade the E-Series fan so that it’s appropriate for sea water cooling tower applications
  • Coupling flanges – we can supply cast iron, polyurethane-coated coupling flanges to mate with drive shafts having either a cylindrical bore or a tapered bushing connection

Description

The Howden E-Series cooling tower fans are a highly versatile that can perform in a wide range of cooling tower environments where stress on the fan may be a consideration. The E-Series is a low-vibration fan, chemically resistant with sustainability in harsh environments.

  • Highly versatile and adaptable – E-Series fans can perform a wide range of duties in stressful environments, up to a load of 40 HP per blade
  • Damps down mechanical vibrations – The FRP blades offer superior damping of mechanical vibrations and great chemical resistance
  • Lasts for many years the fan blade is integrated (rather than bolted on) to the shaft, so there’s not much mechanical stress at the joints
  • Simple to assemble – E-series fans come with clear technical documentation
  • Applications – Field-erected cooling towers, packaged cooling towers, air-cooled condensers (ACC) and air cooled heat exchangers (ACHE)
  • Blades: FRP (Pultruded Fiberglass)
  • Blade Supports: Aluminum
  • Hub: Polyurethane Coated Steel
  • U-bolts: Stainless Steel
  • Fasteners: Stainless Steel

4′-48′ (1.22M-14.63M) | Duty up to 40HP/blade

  • ENF: Classic fan featuring Howden Aerotip technology
  • ELF: Low-Noise
  • ELFA: Extra Low-Noise

Additional information

brand

Howden

number-of-blades

10, 11, 12, 13, 14, 5, 6, 7, 8, 9

diameters

10 ft, 12 ft, 14 ft, 16 ft, 18 ft, 20 ft, 22 ft, 24 ft, 26 ft, 28 ft, 30 ft, 32 ft, 34 ft, 36 ft, 4 ft, 40 ft, 42 ft, 44 ft, 46 ft, 48 ft, 6 ft, 8 ft
