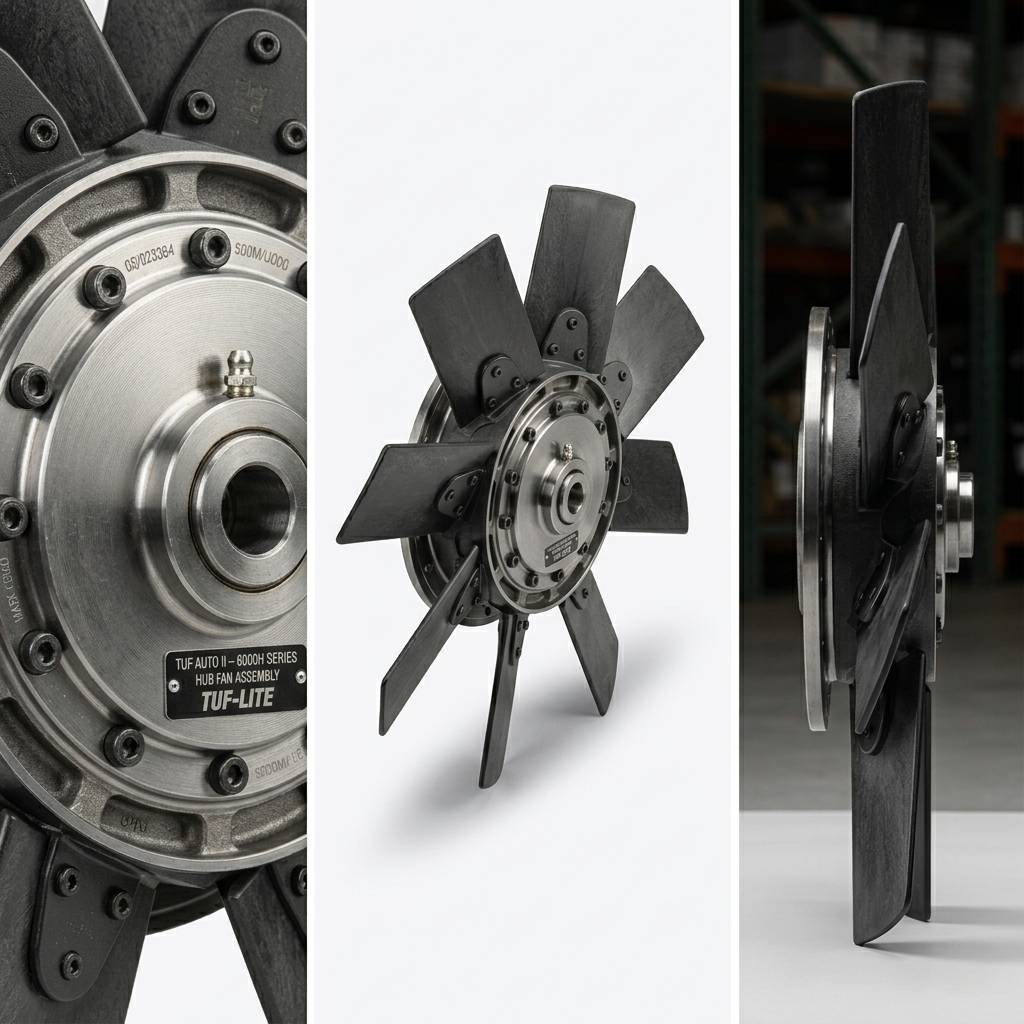

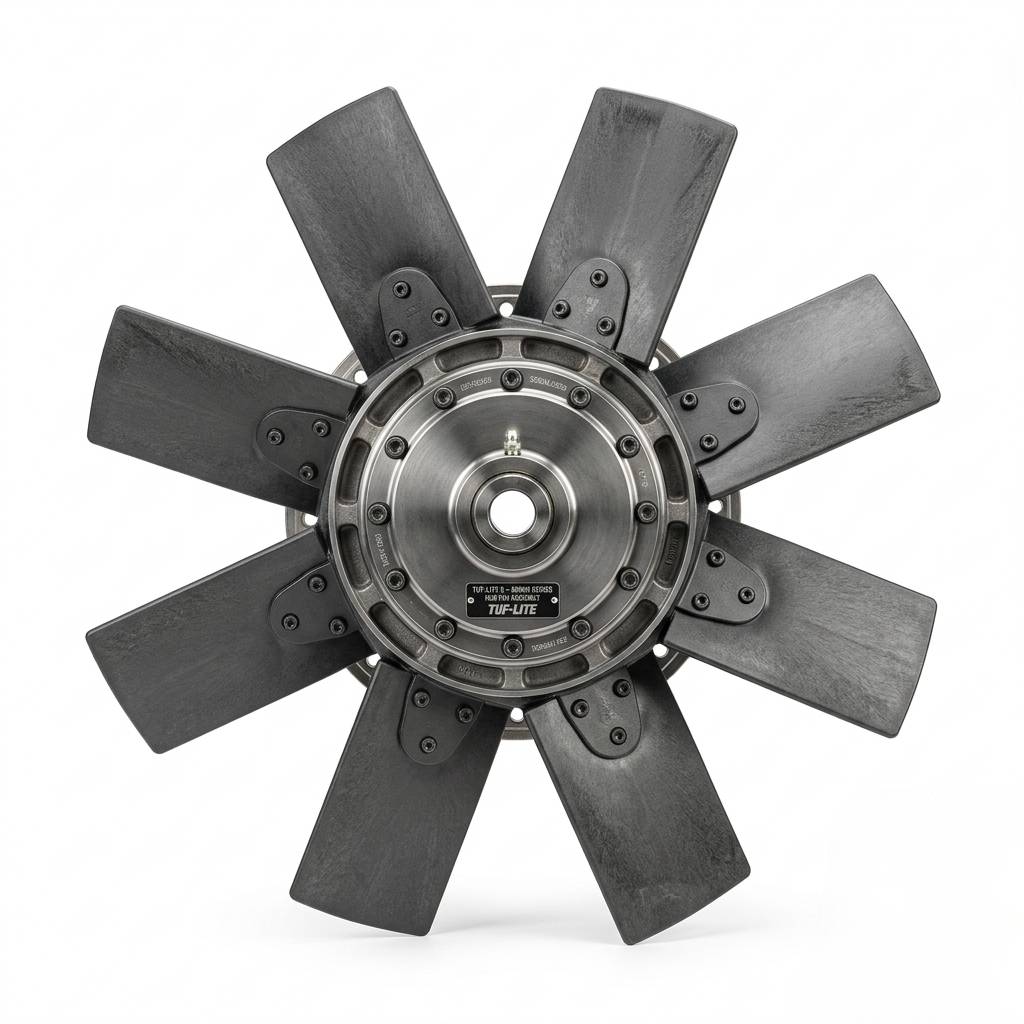

TUF-LITE II – 6000H Series Hub Fan Assemblies

Hudson Tuf-Lite II 6000H Series Cooling Tower Fans. Adjustable Pitch Fan Assembly 22' through 28' Diameter, with Blade Counts from 10 to 20, and 32' & 33' Diameter, with Blade Counts from 6 to 20.

  • Adjustable Pitch Fan Assembly 22′ through 28′ Diameter
  • Blade Counts from 10 to 20
  • Adjustable Pitch Fan Assembly 32′ & 33′ Diameter
  • Blade Counts from 6 to 20
  • Individually balanced blades can be replaced – matched sets are not required
  • Applications: Packaged Cooling Towers, Induced Draft Cooling Towers and Forced Draft Cooling Towers

Description

Adjustable Pitch Fan Assembly 22′ through 28′ Diameter, with Blade Counts from 10 to 20, and Adjustable Pitch Fan Assembly 32′ & 33′ Diameter, with Blade Counts from 6 to 20.

Hudson Tuf-Lite II 6000H Series Hub (White, previously Blue) fan blades are made from fiberglass reinforced vinyl-ester resin having a very high strength-to-weight ratio and superior ultra-violet and corrosion resistance. An elastomeric blade/holder joint cover prevents moisture from entering the blade.

  • Blades: Fiberglass reinforced vinyl ester
  • Seal Disc: Fiberglass Reinforced Polyester
  • Hub Spool: Ductile Iron, Zinc Rich Coating
  • Blade Clamps: Un-painted Aluminum (Standard), Epoxy Coated Aluminum (Option 1), Epoxy Coated Ductile Iron (Option 2), Machined Stainless Steel (Option 3)
  • Plates: Steel, Galvanized
  • Fasteners: Steel, Mech. Galvanized & 316 SS Opt., Complete Fan with 316 SS (Option 1), Complete Fan with K500 Monel (Option 2)
  • Bushing: Malleable Iron

This Fan Assembly series covers model numbers:

  • APT-22H-13
  • APT-22H-14
  • APT-22H-15
  • APT-22H-16
  • APT-22H-17
  • APT-22H-18
  • APT-22H-19
  • APT-22H-20
  • APT-24H-13
  • APT-24H-14
  • APT-24H-15
  • APT-24H-16
  • APT-24H-17
  • APT-24H-18
  • APT-24H-19
  • APT-24H-20
  • APT-26H-10
  • APT-26H-13
  • APT-26H-14
  • APT-26H-15
  • APT-26H-16
  • APT-26H-17
  • APT-26H-18
  • APT-26H-19
  • APT-26H-20
  • APT-28H-13
  • APT-28H-14
  • APT-28H-15
  • APT-28H-16
  • APT-28H-17
  • APT-28H-18
  • APT-28H-19
  • APT-28H-20
  • APT-32H-6
  • APT-32H-7
  • APT-32H-8
  • APT-32H-9
  • APT-32H-10
  • APT-32H-11
  • APT-32H-12
  • APT-32H-13
  • APT-32H-14
  • APT-32H-15
  • APT-32H-16
  • APT-32H-17
  • APT-32H-18
  • APT-32H-19
  • APT-32H-20
  • APT-33H-6
  • APT-33H-7
  • APT-33H-8
  • APT-33H-9
  • APT-33H-10
  • APT-33H-11
  • APT-33H-12
  • APT-33H-13
  • APT-33H-14
  • APT-33H-15
  • APT-33H-16
  • APT-33H-17
  • APT-33H-18
  • APT-33H-19
  • APT-33H-20

Additional information

brand

Hudson

number-of-blades

10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 6, 7, 8, 9

diameters

22 ft, 24 ft, 26 ft, 28 ft, 32 ft, 33 ft
