Adjustable Pitch Fan Assembly 32.8′ or 10 Meter Diameter
Blade Counts from 6 to 20
Individually balanced blades can be replaced – matched sets are not required
Applications: Packaged Cooling Towers, Induced Draft Cooling Towers and Forced Draft Cooling Towers

Blades: Fiberglass reinforced vinyl ester
Seal Disc: Fiberglass Reinforced Polyester
Hub Spool: Ductile Iron, Zinc Rich Coating
Blade Clamps: Powder Epoxy Coated Die Cast Aluminum (Standard), Powder Epoxy Coated Ductile Iron (Option 1), Coal Tar Epoxy Coated Ductile Iron (Option 2)
Plates: Steel, Galvanized
Fasteners: Steel, Mech. Galvanized & 316 SS Opt., Complete Fan with 316 SS (Option 1), Complete Fan with K500 Monel (Option 2)
Bushing: Malleable Iron

This Fan Assembly series covers model numbers:

APT-32.8H-6
APT-32.8H-7
APT-32.8H-8
APT-32.8H-9
APT-32.8H-10
APT-32.8H-11
APT-32.8H-12
APT-32.8H-13
APT-32.8H-14
APT-32.8H-15
APT-32.8H-16
APT-32.8H-17
APT-32.8H-18
APT-32.8H-19
APT-32.8H-20

Manual

Product description

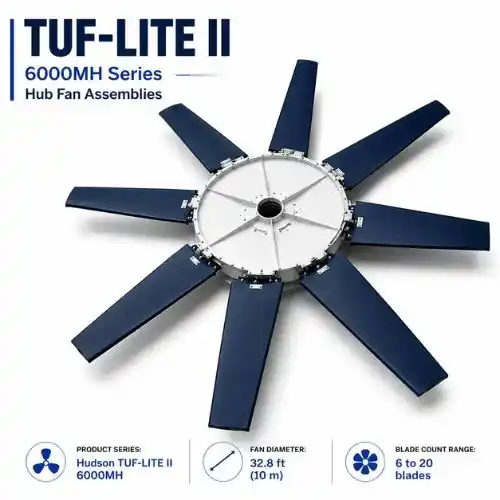

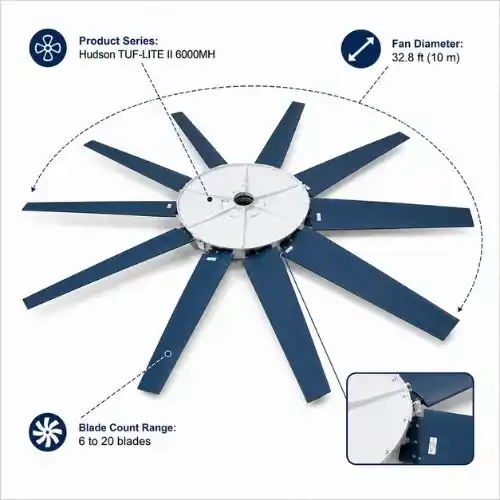

Adjustable Pitch Fan Assembly 32.8′ or 10 Meter Diameter. Blade Counts from 6 to 20.

Hudson Tuf-Lite II 6000MH Series Hub (White, previously Blue) fan blades are made from fiberglass reinforced vinyl-ester resin having a very high strength-to-weight ratio and superior ultra-violet and corrosion resistance. An elastomeric blade/holder joint cover prevents moisture from entering the blade.

Additional information

brand	Hudson
diameters	32.8 ft
number-of-blades	10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 6, 7, 8, 9
