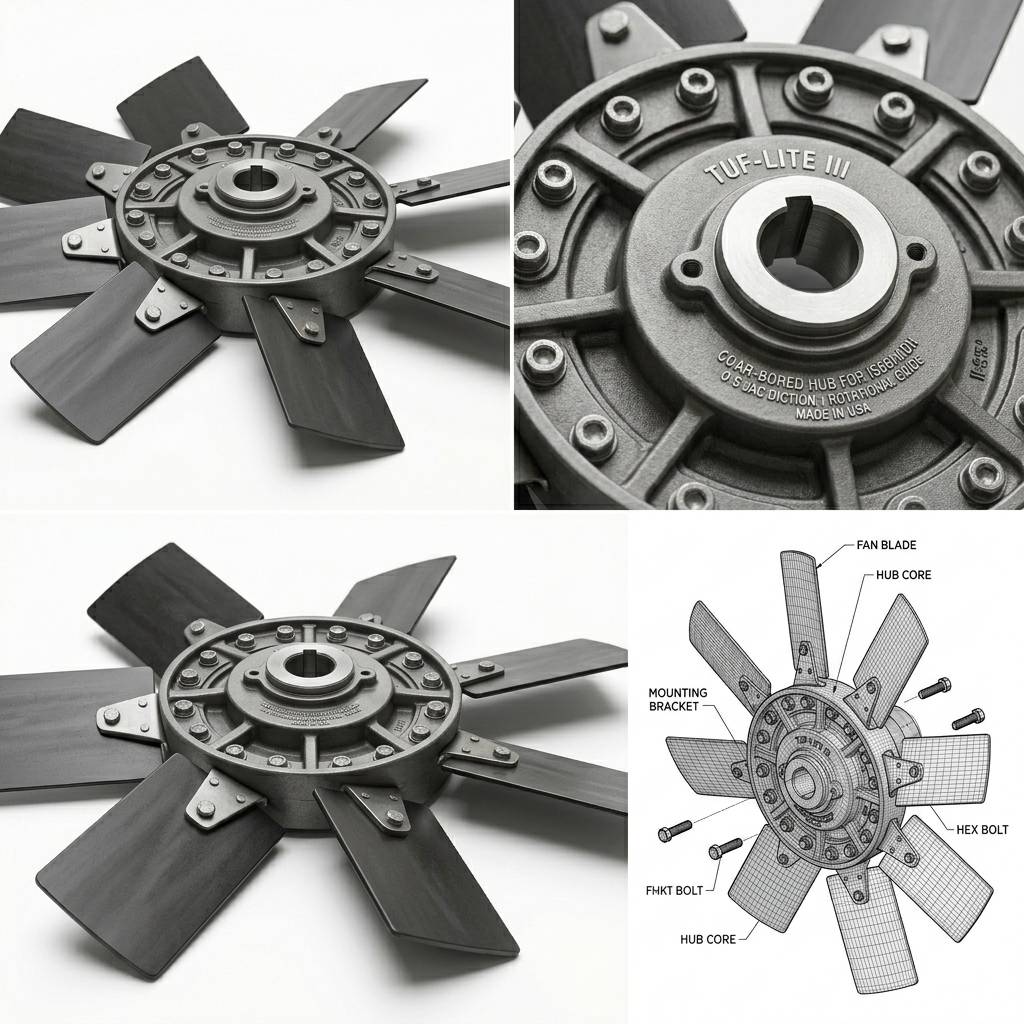

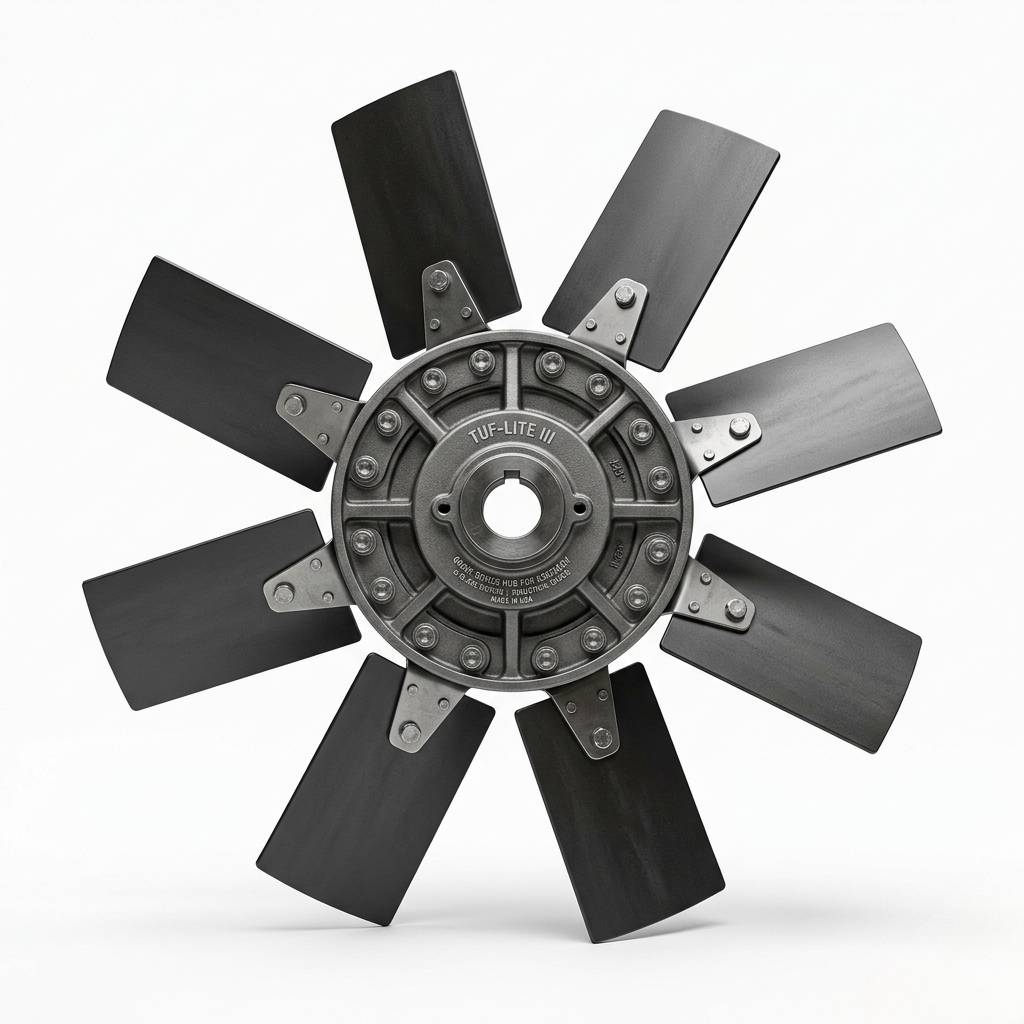

TUF-LITE III – 6000K Series Hub Fan Assemblies

Hudson Tuf-Lite III 6000K Series Hub Cooling Tower Fans. Adjustable Pitch Fan Assembly 32' and 33' Diameter. Blade Counts from 6 to 20.

  • Adjustable Pitch Fan Assembly 32′ and 33′ Diameter
  • Blade Counts from 6 to 20
  • Individually balanced blades can be replaced – matched sets are not required
  • Applications: Induced Draft Cooling Towers and Forced Draft Cooling Towers

Description

Adjustable Pitch Fan Assembly 32′ and 33′ Diameter. Blade Counts from 6 to 20.

Hudson Tuf-Lite III 6000K Series Hub fan blades are of single piece fiberglass reinforced plastic (FRP) construction optimized for performance, reliability, noise, and cost effectiveness. Tuf-Lite III fan blades are constructed of light weight, corrosion resistant, fiberglass reinforced vinyl-ester resin, with materials, thickness, and processes determined from finite element analysis modeling. Tuf-Edge leading edge erosion and UV protection is a standard with this blade.

  • Blades: Fiberglass reinforced vinyl ester or epoxy
  • Seal Disc: Fiberglass Reinforced Polyester
  • Hub Spool: Ductile Iron, Zinc Rich Coating
  • Blade Clamps: Powder Epoxy Coated Die Cast Aluminum (Standard), Powder Epoxy Coated Ductile Iron (Option 1), Coal Tar Epoxy Coated Ductile Iron (Option 2)
  • Plates: Steel, Galvanized
  • Fasteners: Steel, Mech. Galvanized & 316 SS Opt., Complete Fan with 316 SS (Option 1), Complete Fan with K500 Monel (Option 2)
  • Bushing: Malleable Iron

This Fan Assembly series covers model numbers:

  • APT-32K-6
  • APT-32K-7
  • APT-32K-8
  • APT-32K-9
  • APT-32K-10
  • APT-32K-11
  • APT-32K-12
  • APT-32K-13
  • APT-32K-14
  • APT-32K-15
  • APT-32K-16
  • APT-32K-17
  • APT-32K-18
  • APT-32K-19
  • APT-32K-20
  • APT-33K-6
  • APT-33K-7
  • APT-33K-8
  • APT-33K-9
  • APT-33K-10
  • APT-33K-11
  • APT-33K-12
  • APT-33K-13
  • APT-33K-14
  • APT-33K-15
  • APT-33K-16
  • APT-33K-17
  • APT-33K-18
  • APT-33K-19
  • APT-33K-20

Additional information

brand

Hudson

number-of-blades

10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 6, 7, 8, 9

diameters

32 ft, 33 ft
