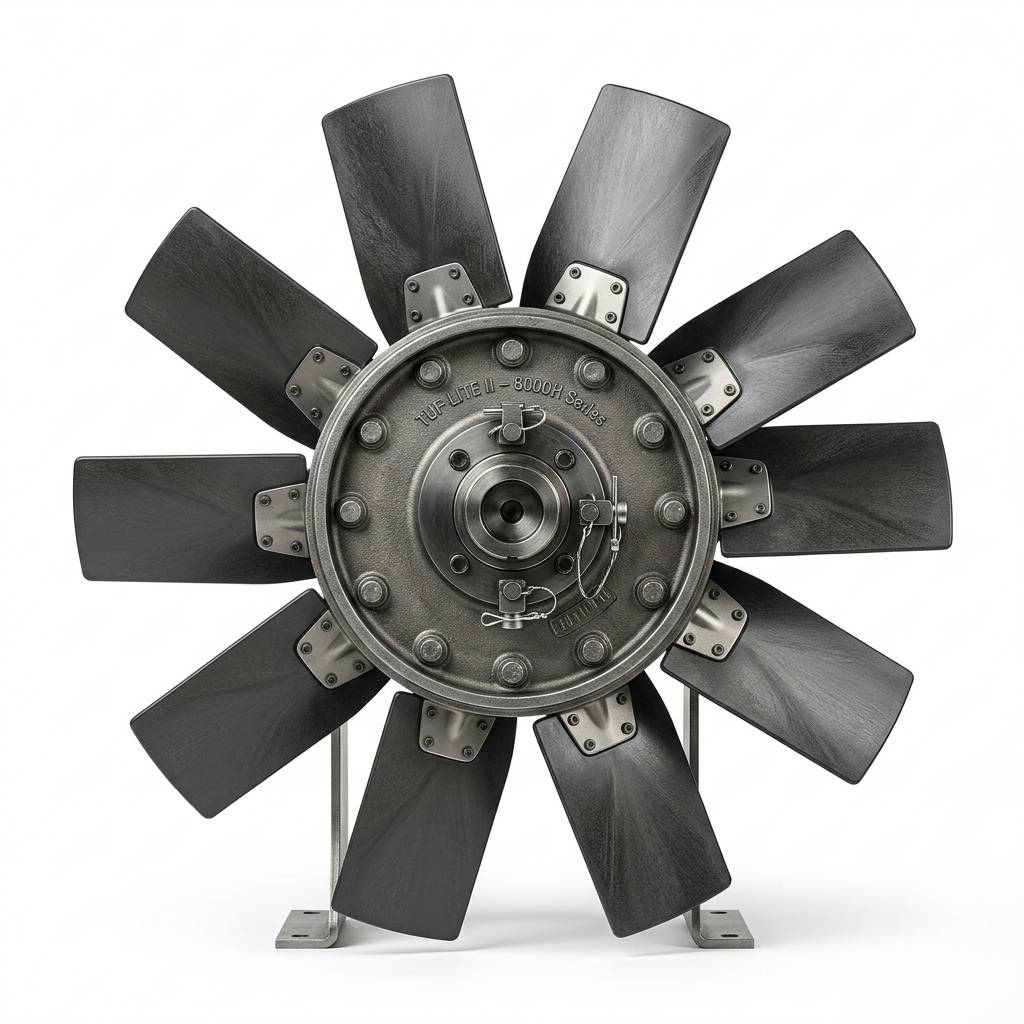

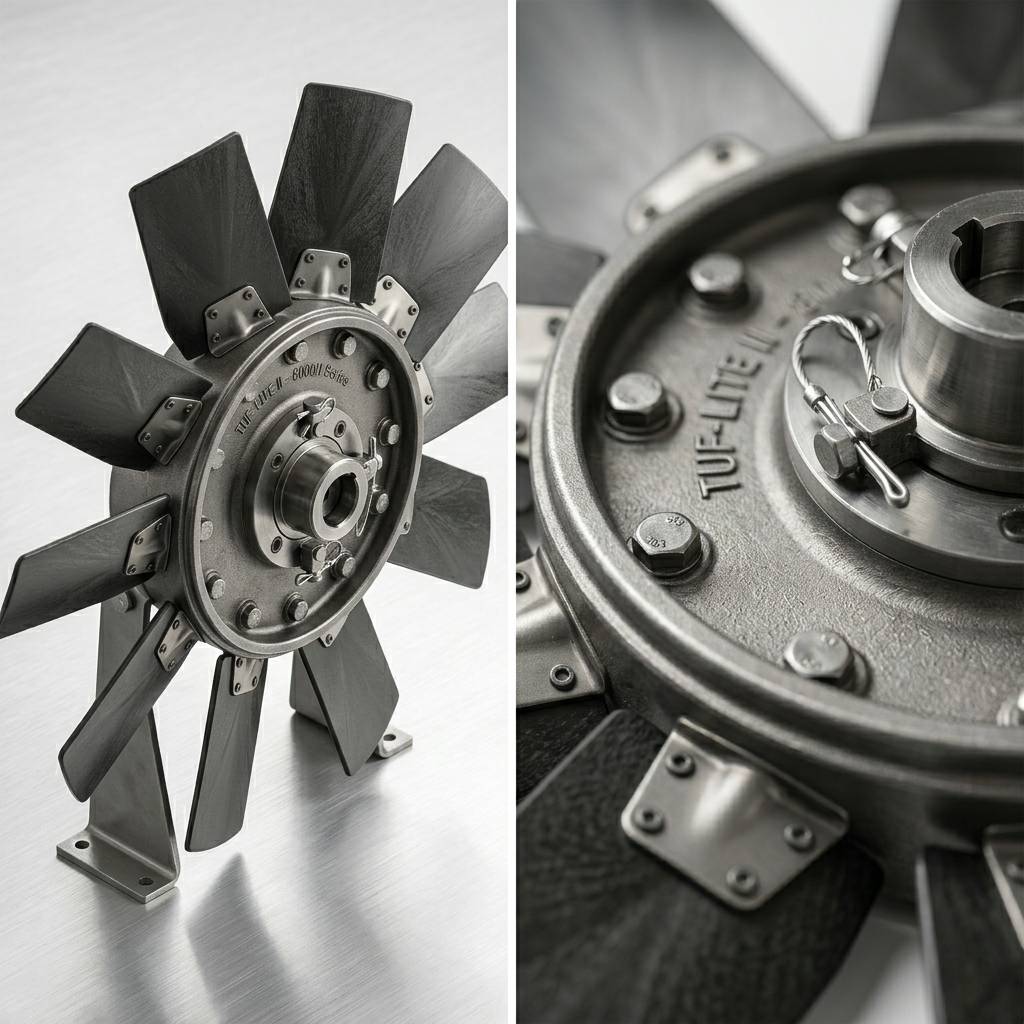

TUF-LITE II – 8000H Series Hub Fan Assemblies

Hudson Tuf-Lite II 8000H Series Hub Cooling Tower Fans. Adjustable Pitch Fan Assembly, 34' through 40' Diameter. Blade Counts from 6 to 14.

  • Adjustable Pitch Fan Assembly 34′ through 40′ Diameter
  • Blade Counts from 6 to 14
  • Individually balanced blades can be replaced – matched sets are not required
  • Applications: Packaged Cooling Towers, Induced Draft Cooling Towers and Forced Draft Cooling Towers

Description

Adjustable Pitch Fan Assembly 34′ & 36′ Diameter. Blade Counts from 6 to 14.

Hudson Tuf-Lite II 8000H Series Hub (White, previously Blue) fan blades are made from fiberglass reinforced vinyl-ester resin having a very high strength-to-weight ratio and superior ultra-violet and corrosion resistance. An elastomeric blade/holder joint cover prevents moisture from entering the blade.

  • Blades: Fiberglass reinforced vinyl ester
  • Seal Disc: Fiberglass Reinforced Polyester
  • Hub Spool: Ductile Iron, Zinc Rich Coating
  • Blade Clamps: Un-painted Aluminum (Standard), Epoxy Coated Aluminum (Option 1), Epoxy Coated Ductile Iron (Option 2), Machined Stainless Steel (Option 3)
  • Plates: Steel, Galvanized
  • Fasteners: Steel, Mech. Galvanized & 316 SS Opt., Complete Fan with 316 SS (Option 1), Complete Fan with K500 Monel (Option 2)
  • Bushing: Malleable Iron

This Fan Assembly series covers model numbers:

  • APT-36H-15
  • APT-36H-16
  • APT-36H-17
  • APT-40H-6
  • APT-40H-7
  • APT-40H-8
  • APT-40H-9
  • APT-40H-10
  • APT-40H-11
  • APT-40H-12
  • APT-40H-13
  • APT-40H-14
  • APT-40H-15
  • APT-40H-16

Additional information

brand

Hudson

number-of-blades

10, 11, 12, 13, 14, 15, 16, 6, 7, 8, 9

diameters

36 ft, 40 ft
