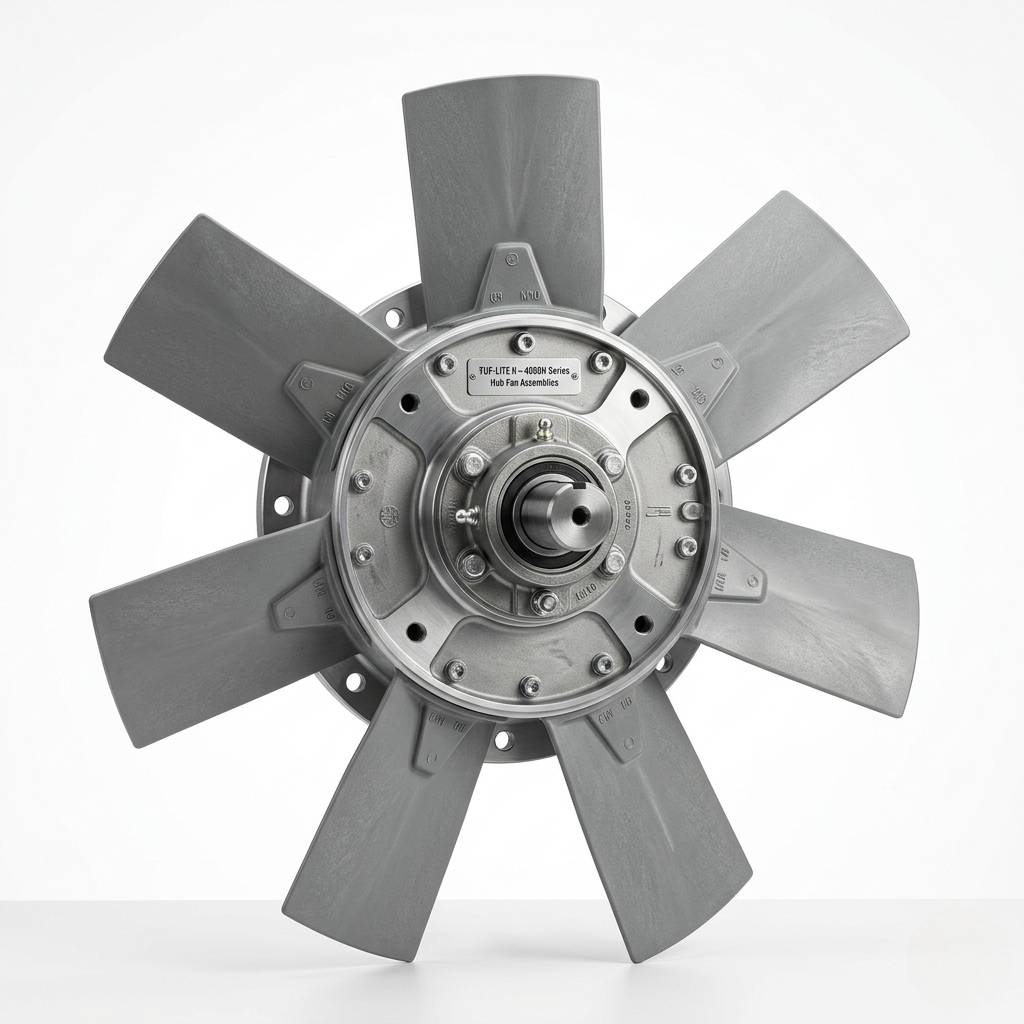

TUF-LITE II – 4000H Series Hub Fan Assemblies

Hudson Tuf-Lite II 4000H Series Hub Cooling Tower Fans. Adjustable Pitch Fan Assembly 15' Through 20' Diameter. Blade Counts from 4 to 10.

  • Adjustable Pitch Fan Assembly 15′ Through 20′ Diameter
  • Blade Counts from 4 to 10
  • Individually balanced blades can be replaced – matched sets are not required
  • Applications: Packaged Cooling Towers, Induced Draft Cooling Towers and Forced Draft Cooling Towers

Description

Adjustable Pitch Fan Assembly 15′ Through 20′ Diameter. Blade Counts from 4 to 10.

Hudson Tuf-Lite II 4000H Series Hub (White, previously Blue) fan blades are made from fiberglass reinforced vinyl-ester resin having a very high strength-to-weight ratio and superior ultra-violet and corrosion resistance. An elastomeric blade/holder joint cover prevents moisture from entering the blade.

  • Blades: Fiberglass reinforced vinyl ester
  • Seal Disc: Fiberglass Reinforced Polyester
  • Hub Spool: Ductile Iron, Zinc Rich Coating
  • Blade Clamps: Un-painted Aluminum (Standard), Epoxy Coated Aluminum (Option 1), Epoxy Coated Ductile Iron (Option 2), Machined Stainless Steel (Option 3)
  • Plates: Steel, Galvanized
  • Fasteners: Steel, Mech. Galvanized & 316 SS Opt., Complete Fan with 316 SS (Option 1), Complete Fan with K500 Monel (Option 2)
  • Bushing: Malleable Iron

This Fan Assembly series covers model numbers:

  • APT-15H-4
  • APT-15H-5
  • APT-15H-6
  • APT-15H-7
  • APT-15H-8
  • APT-15H-9
  • APT-15H-10
  • APT-16H-4
  • APT-16H-5
  • APT-16H-6
  • APT-16H-7
  • APT-16H-8
  • APT-16H-9
  • APT-16H-10
  • APT-17H-4
  • APT-17H-5
  • APT-17H-6
  • APT-17H-7
  • APT-17H-8
  • APT-17H-9
  • APT-17H-10
  • APT-18H-4
  • APT-18H-5
  • APT-18H-6
  • APT-18H-7
  • APT-18H-8
  • APT-18H-9
  • APT-18H-10
  • APT-19H-4
  • APT-19H-5
  • APT-19H-6
  • APT-19H-7
  • APT-19H-8
  • APT-19H-9
  • APT-19H-10
  • APT-20H-4
  • APT-20H-5
  • APT-20H-6
  • APT-20H-7
  • APT-20H-8
  • APT-20H-9
  • APT-20H-10

Additional information

brand

Hudson

number-of-blades

10, 4, 5, 6, 7, 8, 9

diameters

15 ft, 16 ft, 17 ft, 18 ft, 19 ft, 20 ft
