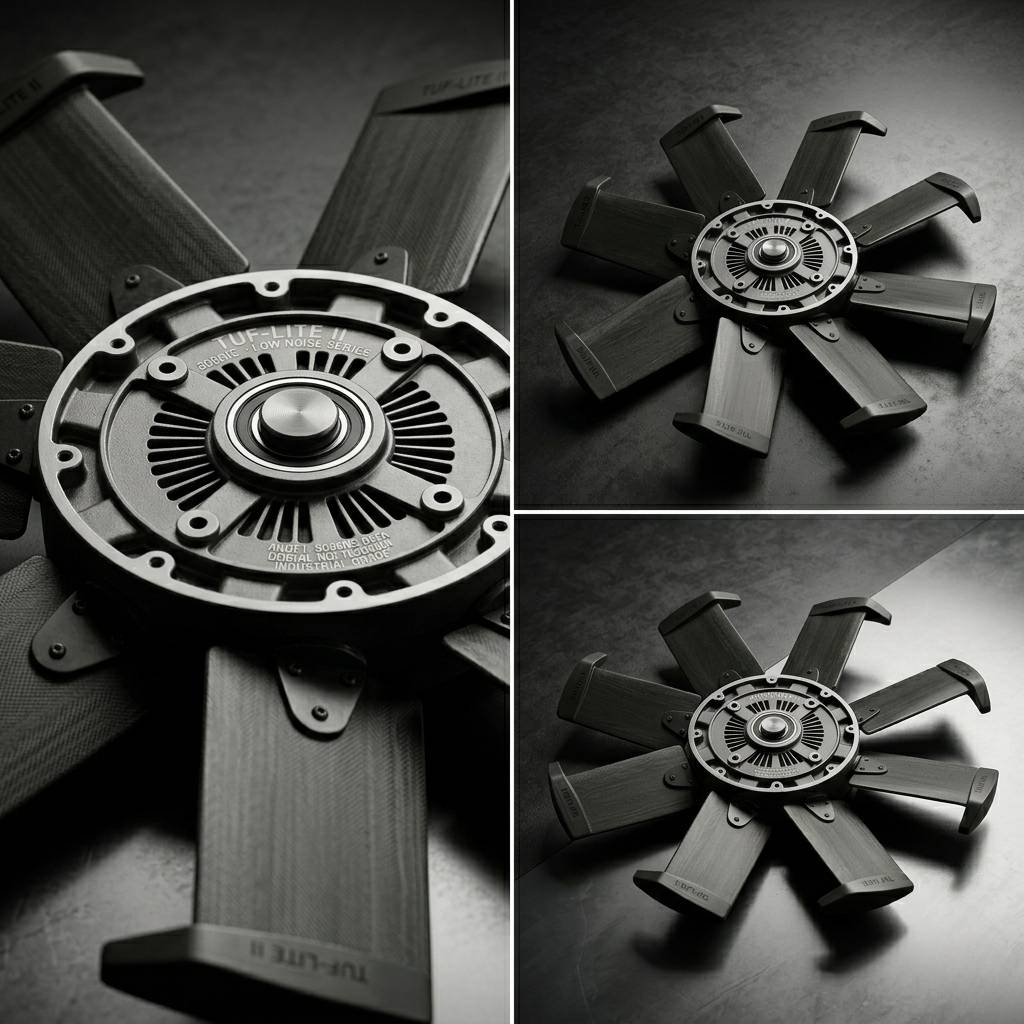

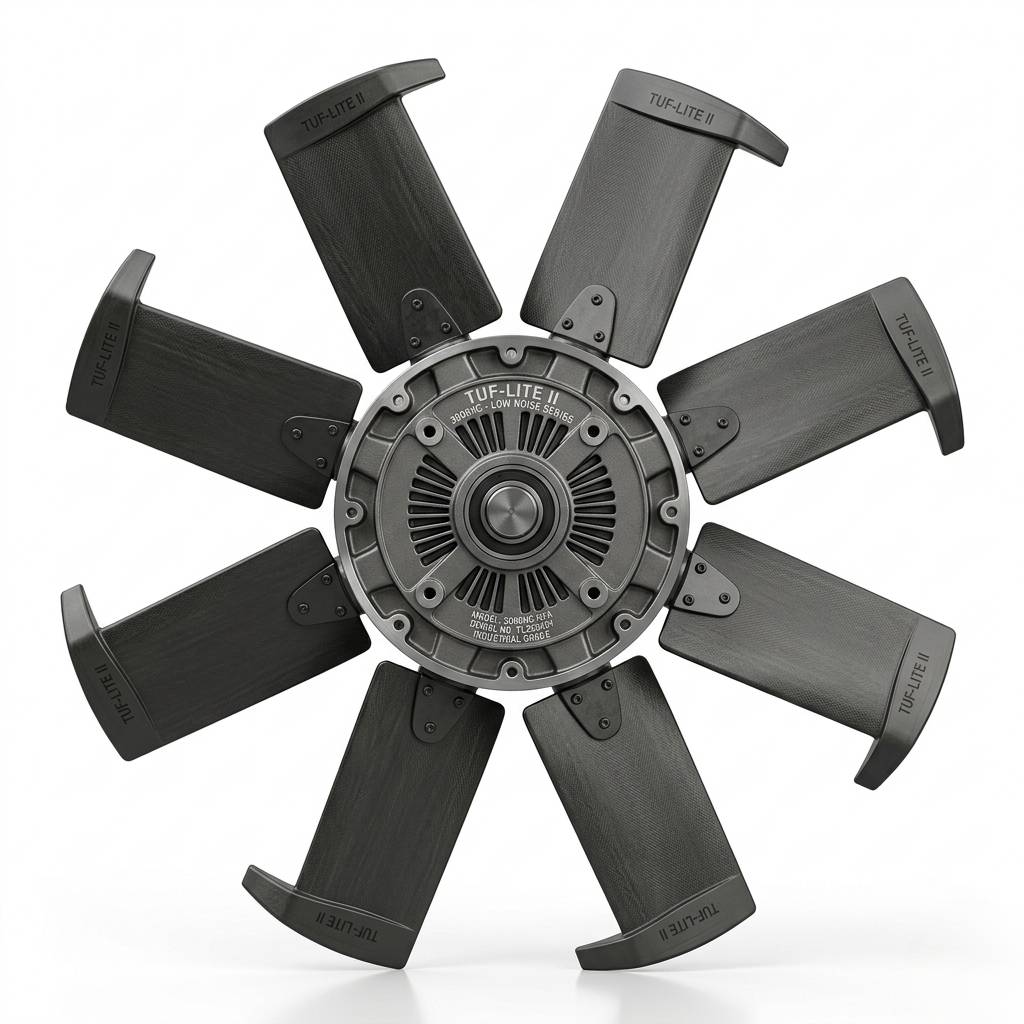

TUF-LITE II – 3000HC Low Noise Series Hub Fan Assemblies

Hudson Tuf-Lite II 3000HC Low Noise Series Hub Fan Assemblies. Adjustable Pitch Fan Assembly 8” Through 10” Diameter. Blade Counts from 4 to 15.

  • Adjustable Pitch Fan Assembly 8′ Through 10′ Diameter
  • Blade Counts from 4 to 15
  • Individually balanced blades can be replaced – matched sets are not required
  • Applications: Packaged Cooling Towers, Induced Draft Cooling Towers and Forced Draft Cooling Towers

Description

Adjustable Pitch Fan Assembly 8′ Through 10′ Diameter. Blade Counts from 4 to 15.

Hudson Tuf-Lite II 3000HC Low Noise Series Hub (White, previously Blue) fan blades are made from fiberglass reinforced vinyl-ester resin having a very high strength-to-weight ratio and superior ultra-violet and corrosion resistance. An elastomeric blade/holder joint cover prevents moisture from entering the blade.

  • Blades: Fiberglass reinforced vinyl ester
  • Seal Disc: Fiberglass Reinforced Polyester
  • Hub Spool: Ductile Iron, Zinc Rich Coating
  • Blade Clamps: Un-painted Aluminum (Standard), Epoxy Coated Aluminum (Option 1), Epoxy Coated Ductile Iron (Option 2), Machined Stainless Steel (Option 3)
  • Plates: Steel, Galvanized
  • Fasteners: Steel, Mech. Galvanized & 316 SS Opt., Complete Fan with 316 SS (Option 1), Complete Fan with K500 Monel (Option 2)
  • Bushing: Malleable Iron

This Fan Assembly series covers model numbers:

  • APT-8HC-4
  • APT-8HC-5
  • APT-8HC-6
  • APT-8HC-7
  • APT-8HC-8
  • APT-8HC-9
  • APT-8HC-10
  • APT-8HC-11
  • APT-8HC-12
  • APT-8HC-13
  • APT-8HC-14
  • APT-8HC-15
  • APT-9HC-4
  • APT-9HC-5
  • APT-9HC-6
  • APT-9HC-7
  • APT-9HC-8
  • APT-9HC-9
  • APT-9HC-10
  • APT-9HC-11
  • APT-9HC-12
  • APT-9HC-13
  • APT-9HC-14
  • APT-9HC-15
  • APT-10HC-4
  • APT-10HC-5
  • APT-10HC-6
  • APT-10HC-7
  • APT-10HC-8
  • APT-10HC-9
  • APT-10HC-10
  • APT-10HC-11
  • APT-10HC-12
  • APT-10HC-13
  • APT-10HC-14
  • APT-10HC-15

Additional information

brand

Hudson

number-of-blades

10, 11, 12, 13, 14, 15, 4, 5, 6, 7, 8, 9

diameters

10 ft, 8 ft, 9 ft
