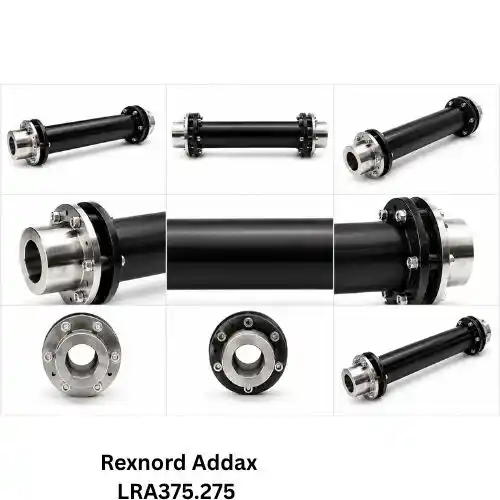

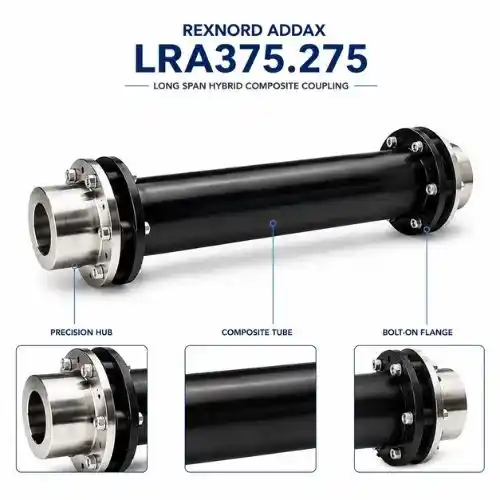

This hybrid composite drive shaft is built to enhance long-span performance while reducing maintenance and mechanical stress in continuous-duty cooling tower systems.
- Advanced hybrid carbon fiber + fiberglass construction improves stiffness and span capability
- Patented unitized flex elements eliminate fretting corrosion and stress cracking
- Lightweight design reduces motor and gearbox bearing loads significantly
- High misalignment tolerance supports up to 1° per shaft end
- Corrosion-free operation in humid and chemically aggressive cooling tower environments
- High critical speed capability enables longer spans without intermediate bearings
- 316 stainless steel hardware ensures long-term durability and corrosion resistance
It is engineered for high-demand cooling tower power transmission with stable performance under continuous industrial operating conditions.
- Model: LRA375.275
- Coupling size: 375.275
- Coupling style: Long span
- Coupling type: Hybrid composite
- Maximum horsepower @ 1800 RPM (2.0 SF): 150 HP
- Maximum horsepower @ 1500 RPM (2.0 SF): 125 HP
- Continuous torque rating: 5,438 in-lb (614 Nm)
- Peak torque rating: 16,313 in-lb (1,843 Nm)
- Maximum DBSE @ 1800 RPM: 141 in (3,581 mm)
- Maximum DBSE @ 1500 RPM: 154 in (3,912 mm)
- Maximum bore capacity: 5.06 in (130 mm)
- Distance between shaft ends: 141 in
- Maximum operating speed: 1800 RPM
- Balanced speed rating: 1800 RPM
- Operational angular misalignment capacity: 1°
- Operational axial misalignment capacity: 0.02 in
- Disc pack material: Composite
- Hardware material: 316 stainless steel
- Hub material: Stainless steel
- Dynamic balance: ANSI/AGMA 9000-C90 Class 9 compliant
