This composite coupling is optimized for efficient cooling tower operation with improved flexibility and reduced drivetrain stress.
- Lightweight composite spacer lowers rotational inertia and bearing load
- Patented flex elements eliminate fretting and stress-crack corrosion
- 316 stainless steel hardware resists aggressive cooling tower environments
- Flexible long-span configuration supports stable drivetrain alignment
- A composite structure absorbs vibration and reduces harmonic transfer
- Dynamically balanced for smoother high-speed operation
- High misalignment tolerance handles structural movement effectively
It is engineered for stable long-span industrial operation and reliable cooling tower drivetrain performance.
- Model: LRX485.425
- Series: Addax LRX
- Coupling Style: Long Span
- Coupling Type: Composite
- Continuous Torque Rating: 5,500 lb-in
- Peak Torque Rating: 16,500 lb-in
- Maximum Horsepower @ 1800 RPM: 150 HP
- Maximum Horsepower @ 1500 RPM: 129 HP
- Maximum Speed: 1800 RPM
- Balanced Speed Rating: 1800 RPM
- Maximum DBSE @ 1800 RPM: 154 in
- Maximum DBSE @ 1500 RPM: 169 in
- Distance Between Shaft Ends (DBSE): 154 in

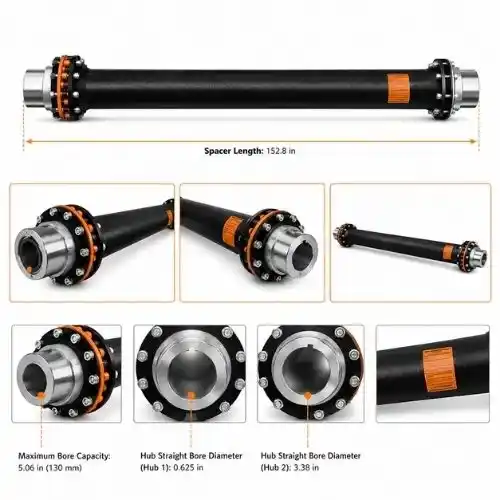

- Spacer Length: 152.8 in
- Maximum Bore Capacity: 5.06 in (130 mm)
- Hub Straight Bore Diameter (Hub 1): 0.625 in
- Hub Straight Bore Diameter (Hub 2): 3.38 in
- Disc Pack Material: Composite
- Hub Material: Stainless Steel
- Hardware Material: Stainless Steel
- Dynamic Balance Standard: ISO 1940 G6.3 compliant
The Rexnord Addax Composite Cooling Tower Coupling delivers the best value for the cooling tower industry by providing excellent features such as:
- Corrosion resistance
- High-misalignment capacity
- Excellent fatigue resistance
- Low weight
Low Weight Means Easy Installation
The advanced composite, full-floating center section of Rexnord Addax Composite Couplings weigh less than 25% of a comparable steel spacer. In fact, most of these couplings weigh less than 100 (45.36 kg) pounds, which can often eliminate the need for special lifting equipment and simplify handling and installation.
