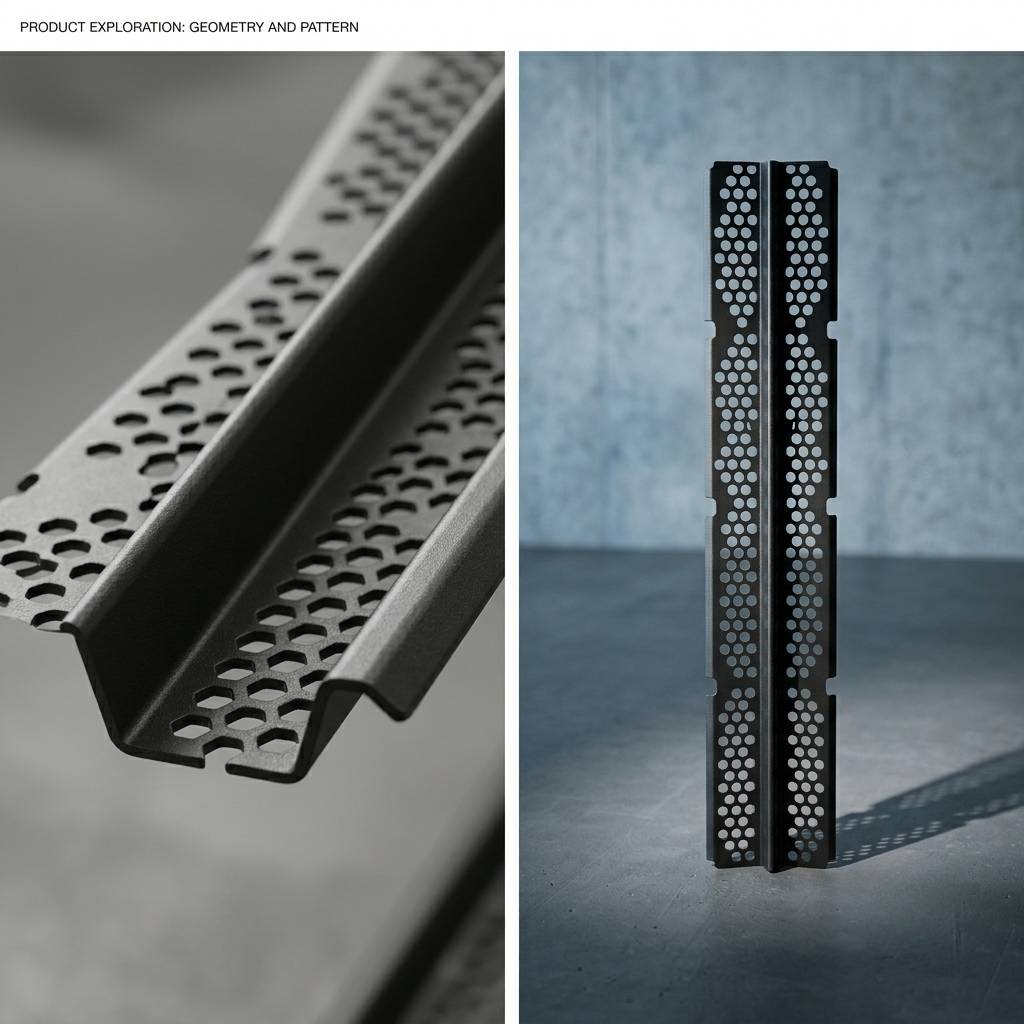

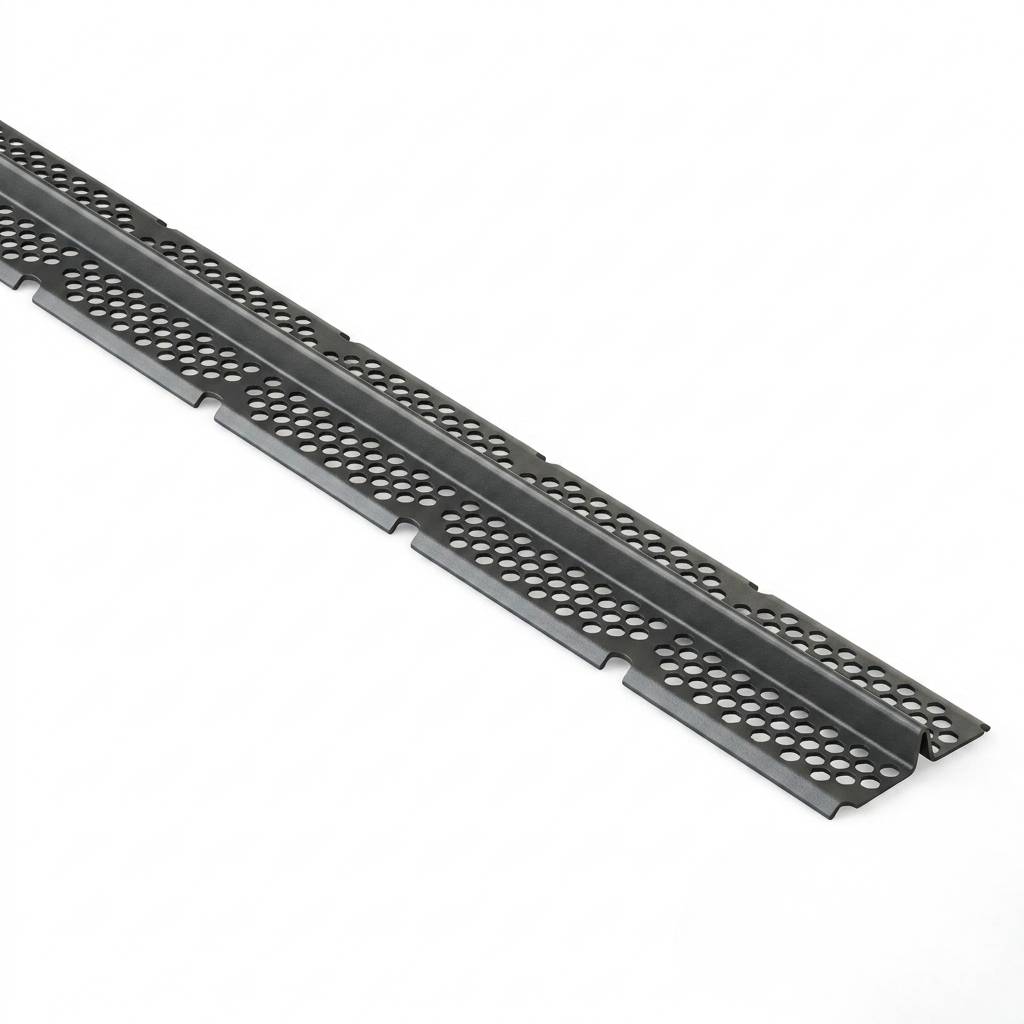

Brentwood Kelly Bar Splash Fill

Standard Kelly Bar is designed for spans up to 3 ft. (915 mm) and Heavy Duty for spans up to 4 ft. (1219 mm). The 4.25” (108 mm) wide top surface and 1/8” (3 mm) wire overhang help reduce water streaming between fill layers. This classic design maximizes practicality and can be oriented either parallel or perpendicular to airflow and in any standard fill arrangement, depending on thermal requirements.

  • The 4.25-inch (108 mm) wide top surface and 0.125-inch (3 mm) wire overhang help reduce water streaming between fill layers.
  • The Inverted V Stiffener provides strength and reduces the potential for damage from high water or ice loading.
  • Heavy-duty Kelly Bars span up to 5 feet (1524 mm), reducing the number of wire hangers needed.
  • The Kelly Bar can be notched either 3 inches or 6 inches from the end. Notches can then be placed at any point in 6-inch increments from the initial end notch.
  • Kelly Bars nest together for space-efficient stacking and cost-effective shipping.
  • Made from rigid CTI STD-136 PVC and UV-protected with ultra-fine carbon black.
  • When mounted with Brentwood Fill Clips, droplet-induced vibration and flutter are reduced, creating more energetic droplet rebound and increased thermal performance.

Kelly Bar Specs
AccuPac Splash Fill Brochure

Product description

AccuPac® Kelly Bar is a well-known splash fill with a proven performance record. The Kelly Bar is named after Neil Kelly, a man responsible for significant contributions in the field of crossflow wet cooling technology. This classic product is designed to maximize practicality and can be oriented either parallel or perpendicular to air flow in any standard fill arrangement, depending on thermal requirements.
