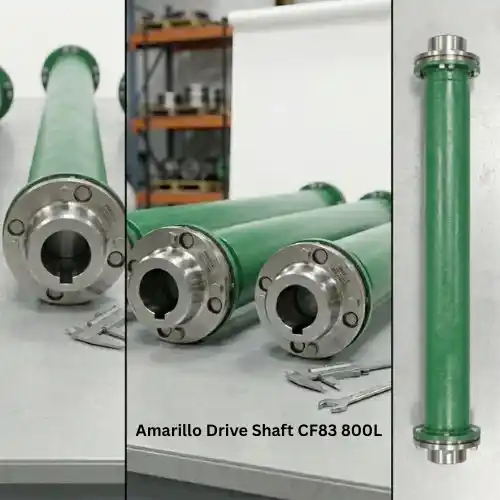

This drive shaft is built to deliver reliable operation in demanding high-load cooling tower applications.
- Lightweight composite tube optimized for reduced structural load in long-span configurations
- 8-bolt yellow-coded flex disc ensures consistent torque transfer across extended distances
- Enhanced shaft flexibility allows improved performance in mid-to-long span cooling tower layouts
- Corrosion-resistant composite system performs reliably in high-moisture and chemically treated environments
- Reduced overhung load significantly extends motor and gearbox bearing life
- Factory-balanced system ensures smooth operation in variable installation geometries
It is optimized for reliable high-horsepower operation and stable performance across mid-to-long span installations.
- Model: CF83 800L
- HP Rating @ 1800 RPM (2.0 SF): 357 HP (266 kW)
- HP Rating @ 1500 RPM (2.0 SF): 298 HP (222 kW)
- Continuous Torque (2.0 SF): 12,500 in-lb (1,413 Nm)
- Peak Overload Torque: 50,000 in-lb (5,650 Nm)
- Max DBSE @ 1800 RPM: 166 in (4,205 mm)
- Max DBSE @ 1500 RPM: 181 in (4,605 mm)
- Max DBSE @ 1185 RPM: 203 in (5,160 mm)
- Flex Disc Configuration: 8-bolt yellow-coded composite flex disc
- Flex Disc Outer Diameter: 8.38 in (213 mm)
- Standard Hub Max Bore: 3.875 in (98 mm)
- Large Hub Bore Capacity: Contact factory
- Minimum Bore: 2.06 in (53 mm)
- Dim “A”: 8.0 in (203 mm)
- Dim “B”: 8.75 in (222 mm)
- Dim “C”: 3.13 in (79 mm)
- Assembly Weight: 113 lbs (51.3 kg)
- Dynamic Balance: AGMA 9000-C90 Class 9 compliant
