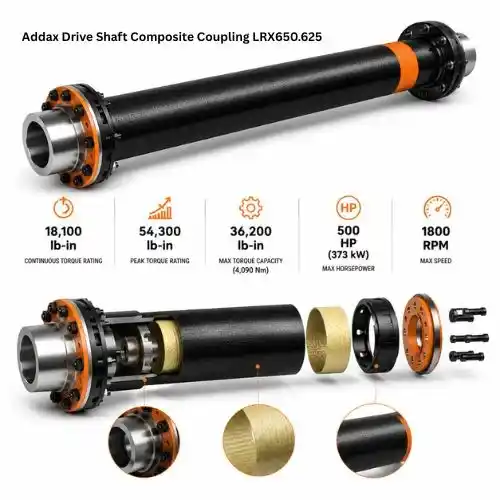

This composite driveshaft is optimized for long-span industrial systems operating in corrosive and high-moisture environments.
- Lightweight composite center tube reduces bearing and structural loads
- Patented urethane-encapsulated flex elements eliminate fretting corrosion
- High-stiffness construction supports long spans without center bearings
- Corrosion-resistant hubs and hardware withstand chemical exposure
- Low thermal expansion improves alignment stability during operation
- A composite structure absorbs vibration and shock loads effectively
- Optional K-500 Monel hardware available for extreme environments
It is engineered for stable high-speed operation and reliable torque transmission in continuous-duty industrial applications.
- Model: LRX650.625
- Coupling Style: Long Span
- Coupling Type: Composite
- Continuous Torque Capacity: 9,050 lb-in (1,022 Nm)
- Peak Torque Capacity: 27,150 lb-in (3,067 Nm)
- Maximum Horsepower @ 1800 RPM: 250 HP (186 kW)
- Maximum Horsepower @ 1500 RPM: 214 HP (160 kW)
- Maximum Speed: 1800 RPM
- Balanced Speed Rating: 1800 RPM

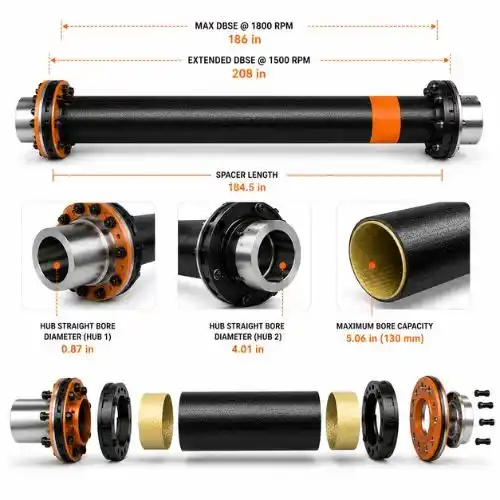

- Distance Between Shaft Ends (DBSE): 186 in
- Maximum DBSE @ 1800 RPM: 186 in
- Extended DBSE @ 1500 RPM: 208 in
- Spacer Length: 184.5 in
- Hub Straight Bore Diameter (Hub 1): 0.87 in
- Hub Straight Bore Diameter (Hub 2): 4.01 in
- Maximum Bore Capacity: 5.06 in (130 mm)
- Operational Angular Misalignment: Up to 1° per flex element
- Disc Pack Material: Composite
- Hub Material: Stainless Steel
- Hardware Material: Stainless Steel
- Dynamic Balance Standard: ANSI/AGMA 9000-C90 Class 9 and ISO 1940 G6.3 compliant
- Compliance Standards: ISO 14691 and ATEX II 2G c T5 certified
