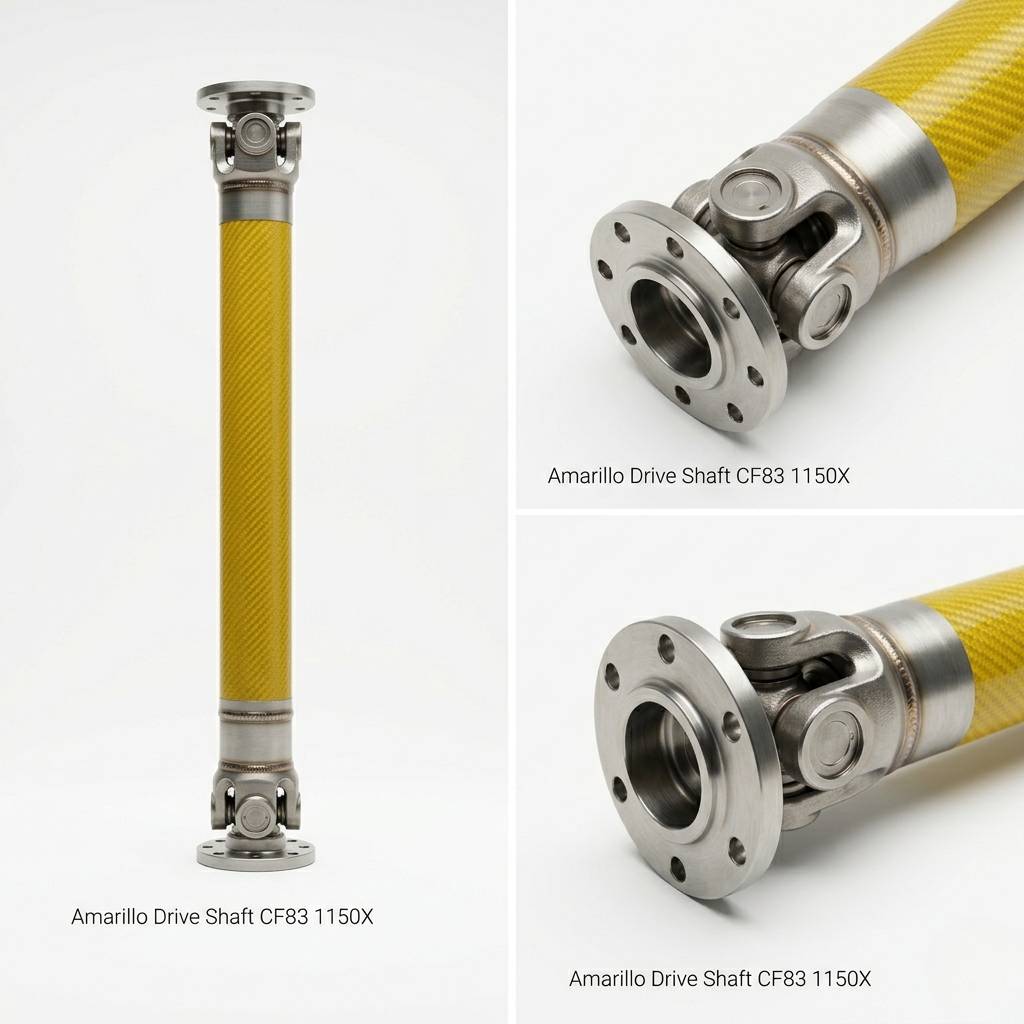

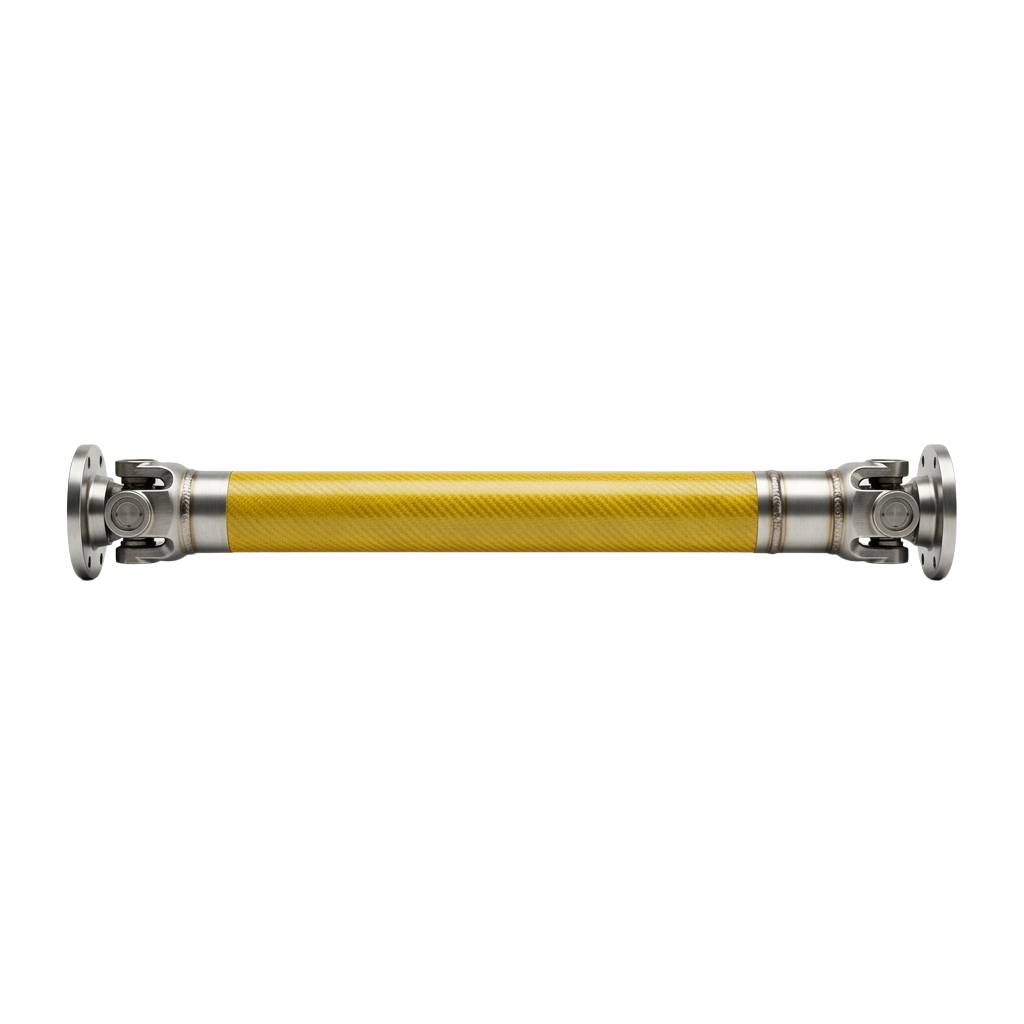

Amarillo Drive Shaft CF83 1150X

$9,505.00

Specially made for cooling towers by a cooling tower gear manufacturer, Amarillo drive shaft composite couplings are available in all sizes for all cooling towers.

Out of stock

This driveshaft is assembled with 316 stainless steel hardware and hubs.

The Max HP at a 2.0 Service Factor is 357 at 1,800 RPM and 298 at 1,500 RPM

The max DBSE (in.) is 220 at 1,800 RPM and 242 at 1,500 RPM.
The Amarillo Gear Composite Drive Shaft for cooling towers reflects a long history of quality workmanship and reliability. Amarillo Gear has been designing and manufacturing power transmission products since 1934. The Amarillo Gear Composite Drive Shaft is the perfect complement to the Amarillo Right Angle Gear Drive. Each drive shaft connects the electric motor to the gearbox input shaft, thereby transmitting torque to rotate the cooling tower fan. Each drive shaft is specifically manufactured and engineered for the specific application to achieve optimum performance. The Amarillo Gear Composite Drive Shaft will accommodate spans ranging from 2 feet in small HVAC towers, to over 20 feet in large field erected towers. Amarillo Gear is proud to be a certified ISO 9001:2008 company. Design features and ratings of the Amarillo Gear Composite Drive Shafts are in accordance with, or exceed, the minimum requirements of AGMA (American Gear Manufacturers Association) standards.

Amarillo Gear

Dimensional Data

Table I – Dimensional Data (All dimensions shown in inches (mm))

Model #

# Bolts Per Flex Disc

Flex Disc Color

Flex Disc OD

Max Bore Standard Hub

Max Bore Large Hub

Minimum Bore

Dim “A”

Dim “B”

Dim “C”

CF52 275

6

red

5.25 (133)

2.375

2.375

0.93 (24)

2.75 (70)

5.75 (145)

2.44 (62)

CF60 275

6

Green

6.00 (152)

2.375 (60)

3.375 (90)

0.938 (24)

2.75 (70)

6.38 (162)

2.44 (62)

CF60 425

0.938 (24)

4.25 (108)

6.38 (162)

2.44 (62)

CF67 275

6

Orange

6.75 (171)

3.000 (76)

3.375 (90)

1.56 (40)

2.75 (70)

7.13 (181)

2.75 (70)

CF67 425

1.56 (40)

4.25 (108)

7.13 (181)

2.75 (70)

CF67 600

1.56 (40)

6.00 (152)

7.13 (181)

2.75 (70)

CF73 425

8

Blue

7.30 (185)

3.375 (90)

3.625 (95)

1.81 (46)

4.25 (108)

7.67 (195)

2.75 (70)

CF73 600

1.81 (46)

6.0 (152)

7.67 (195)

2.75 (70)

CF73 800

1.81 (46)

8.0 (203)

7.67 (195)

2.75 (70)

CF73 950

1.81 (46)

9.5 (241)

7.67 (195)

2.75 (70)

CF83 425

8

Yellow

8.38 (213)

3.875 (98)

Contact Factory

2.06 (53)

4.25 (108)

8.75 (222)

3.13 (79)

CF83 600

2.06 (53)

6.0 (152)

8.75 (222)

3.13 (79)

CF83 800

2.06 (53)

8.0 (203)

8.75 (222)

3.13 (79)

CF83 950

2.06 (53)

9.5 (241)

8.75 (222)

3.13 (79)

CF83 1150

2.06 (53)

11.50 (292)

8.75 (222)

3.13 (79)

Product description

Amarillo Drive Shaft Composite Coupling Information

Comparison with Steel Drive Shafts

Features

Benefits

High Strength to Weight Ratio

Composite center spacer member weight is a mere fraction of the weight of a steel drive shaft center member.

Inherent Corrosion Resistance

Composite materials have corrosion resistance exceeding that of 316 stainless steel.

Long Spans

Eliminates requirement for high maintenance and costly intermediate pillow block bearings.

Patented Composite Flex Disc

Low maintenance; no fretting corrosion of steel “shim” packs, plus much easier installation and maintenance.

Dimensionally Stable

Very low Coefficient of Thermal Expansion (CTE).

Vibration & Shock Control

The natural dampening of composite materials reduces the transmission of vibration throughout the power train, resulting in less wear and tear on mechanical equipment.

Comparison with Other Composite Drive Shafts

Features

Benefits

Greater Misalignment Capacity

When misalignment occurs due to mechanical equipment shifting, greater than one degree of angular misalignment per flex disc allowed.

Composite Flex Discs

Color coded by size for easy identification. Includes integral 316 SS bushings.

Registered Bushings & Flanges

Lower stress concentrations and better assurance of alignment.

High Strength Composite Flange Hubs

Spacer tube flange hubs are strong and corrosion resistant, while at the same time lightweight, reducing overhung loads.

316 SS Flange Hubs

Corrosion resistance of stainless steel for motor & gearbox hubs.

Standard 316 SS Hardware

Since precision hardware is not required, fasteners are easily replaced, and at lower costs. Optional monel hardware available.

High Service Factor Rating

Capable of withstanding repetitive high start-up torques.

Balancing

All drive shafts are dynamically balanced to AGMA 9000-C90, Class 9 specifications.

Process Verification

Each Amarillo composite drive shaft is tested to 4 times continuous operating torque prior to shipment.

Easier Installation

Fewer parts required at each flex disc connection.

Special Shipping Tubes

Designed to give ultimate drive shaft protection for both international and domestic shipments.
