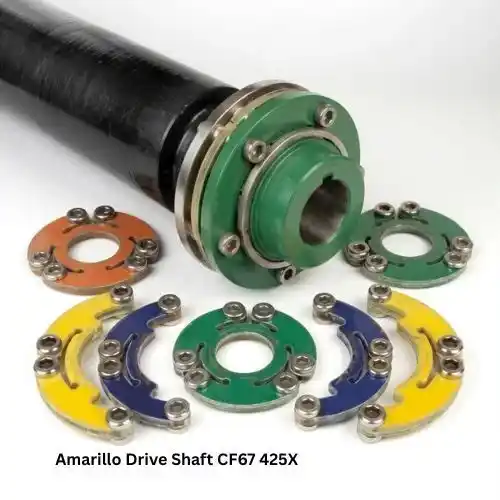

This composite drive shaft improves drivetrain reliability while reducing maintenance and bearing stress in continuous-duty cooling tower systems.
- 6-bolt orange-coded composite flex disc eliminates fretting corrosion
- Lightweight composite construction reduces motor and gearbox bearing loads
- Corrosion-resistant materials perform reliably in high-humidity environments
- Long-span design removes the need for intermediate support bearings
- The composite center section absorbs vibration and shock loads effectively
- Maintenance-free flex disc system eliminates lubrication requirements
- Dynamically balanced for smooth high-speed cooling tower operation
It is engineered to maintain reliable torque transmission and stable performance under demanding industrial operating conditions.
- Model: CF67 425X
- Maximum horsepower @ 1800 RPM (2.0 SF): 150 HP (112 kW)
- Maximum horsepower @ 1500 RPM (2.0 SF): 125 HP (93 kW)
- Continuous torque (2.0 SF): 5,250 in-lb (593 Nm)
- Peak overload torque: 21,000 in-lb (2,374 Nm)
- Max DBSE @ 1785 RPM: 136 in (3,450 mm)
- Max DBSE @ 1500 RPM: 149 in (3,780 mm)
- Max DBSE @ 1185 RPM: 167 in (4,240 mm)
- Flex disc configuration: 6-bolt composite flex disc system
- Flex disc color: Orange
- Flex disc outer diameter: 6.75 in (171 mm)
- Standard hub max bore: 3.000 in (76 mm)
- Large hub max bore: 3.375 in (90 mm)
- Minimum bore: 1.56 in (40 mm)
- Dim “A”: 4.25 in (108 mm)
- Dim “B”: 7.13 in (181 mm)
- Dim “C”: 2.75 in (70 mm)
- Assembly weight: 54 lbs (24.5 kg)
- Assembly WR² (moment of inertia): 226 lb-in²
