Ensure stable power transmission in cooling tower systems under harsh operating conditions. This coupling reduces stress while maintaining smooth drivetrain performance.
- 316 stainless steel hubs and hardware for strong corrosion resistance
- Lightweight design reduces overhung load on motor and gearbox bearings
- A composite structure absorbs vibration and shock for smoother operation
- Factory-balanced to AGMA 9000-C90 Class 9 standards
- Designed for long-span cooling tower and fan drive systems
- Reliable performance in humid and chemically aggressive environments
All specifications are validated for consistent performance in real cooling tower applications.
The design ensures dependable operation under long spans, continuous load, and harsh environmental exposure.

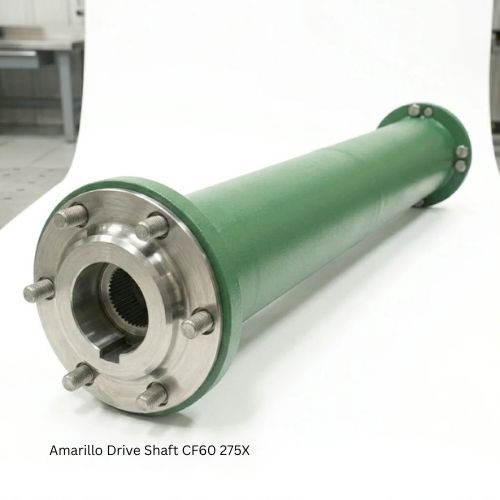

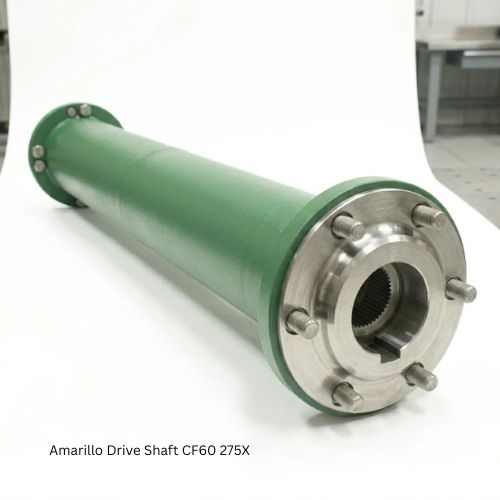

- Model: CF60 275X
- HP Rating @ 1800 RPM (2.0 SF): 90 HP (67 kW)
- Continuous Torque (2.0 SF): 3,175 in-lb (359 Nm)
- Peak Overload Torque: 12,700 in-lb (1,435 Nm)
- Max DBSE @ 1785 RPM: 106 in (2,700 mm)
- Max DBSE @ 1485 RPM: 116 in (2,960 mm)
- Max DBSE @ 1185 RPM: 130 in (3,310 mm)
- Assembly Weight (Max DBSE): 33 lb
- Assembly WR² (Inertia): 105 lb-in²
- Standard Hub Max Bore: 2.375 in (60 mm)
- Large Hub Max Bore: 3.375 in (90 mm)
- Minimum Bore: 0.938 in (24 mm)
- Dim “A”: 2.75 in (70 mm)
- Dim “B”: 6.38 in (162 mm)
- Dim “C”: 2.44 in (62 mm
