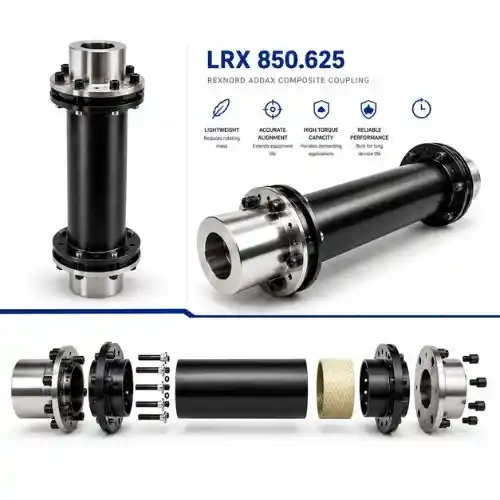

This composite coupling is designed for high-load industrial systems where lightweight construction and long-span stability are critical.
- Continuous-fiber composite spacer dramatically reduces rotating mass compared to steel shafts
- Urethane-encapsulated flex elements minimize fretting corrosion and drivetrain wear
- High-stiffness composite construction improves critical speed stability during operation

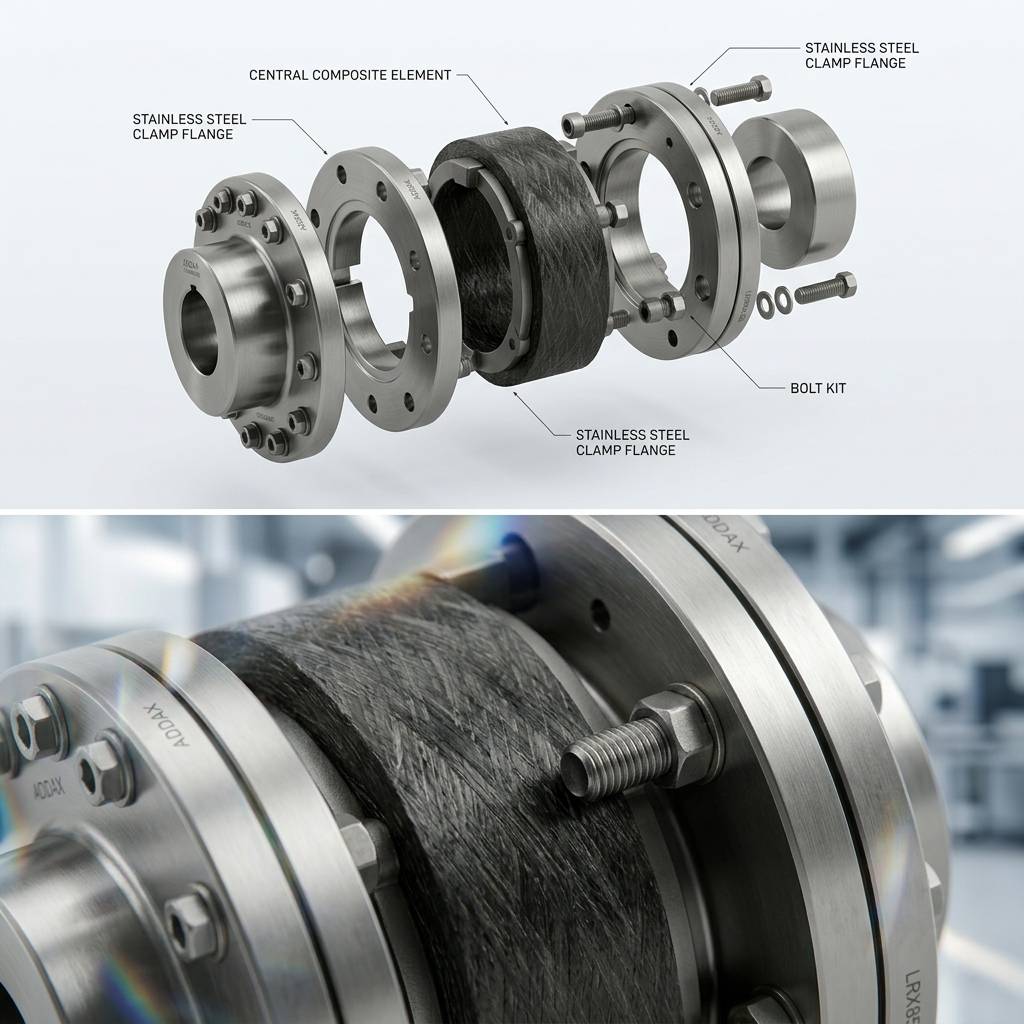

- 316 stainless steel hubs and hardware provide strong corrosion resistance in harsh environments
- The floating shaft configuration eliminates the center steady bearing requirements
- Low thermal expansion helps maintain alignment consistency during temperature changes
- Lightweight assembly reduces startup inertia and bearing stress on connected equipment
It is engineered for continuous-duty industrial applications requiring long-span operation, stable torque transfer, and high structural reliability.
- Model: LRX 850.625
- Coupling Style: Long Span
- Coupling Type: Composite

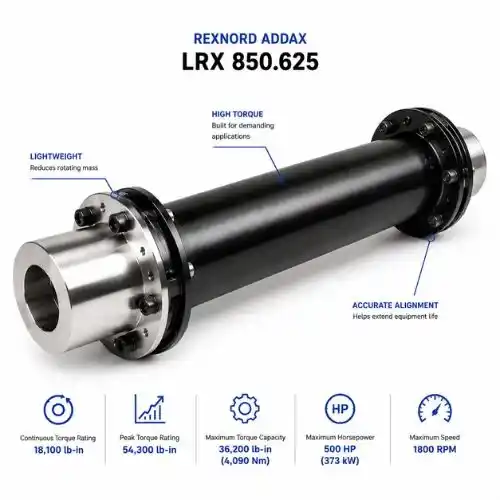

- Continuous Torque Rating: 18,100 lb-in
- Peak Torque Rating: 54,300 lb-in
- Maximum Torque Capacity: 36,200 lb-in (4,090 Nm)
- Maximum Horsepower: 500 HP (373 kW)
- Maximum Speed: 1800 RPM
- Balanced Speed Rating: 1800 RPM
- Distance Between Shaft Ends (DBSE): 186 in
- Maximum Span Capability: Up to 275 in (6,985 mm)
- Spacer Length: 184.5 in
- Hub Straight Bore Diameter (Hub 1): 1.876 in
- Hub Straight Bore Diameter (Hub 2): 5.06 in
- Maximum Bore Capacity: 5.06 in (130 mm)
- Disc Pack Material: Composite
- Hub Material: Stainless Steel
- Hardware Material: Stainless Steel
- Dynamic Balance Standard: ANSI/AGMA 9000-C90 Class 9 and ISO 1940 G6.3 compliant
