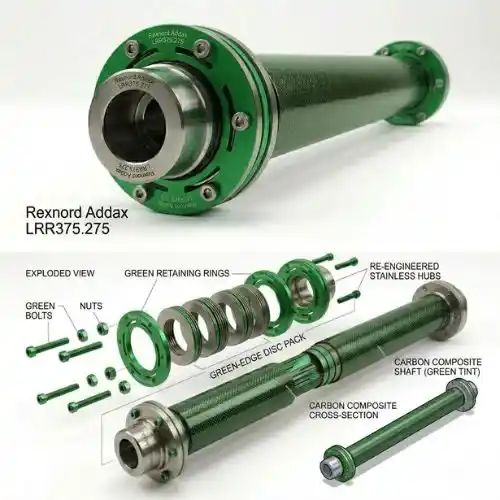

This carbon fiber composite drive shaft improves cooling tower reliability while reducing maintenance, vibration, and bearing wear in continuous-duty industrial environments.

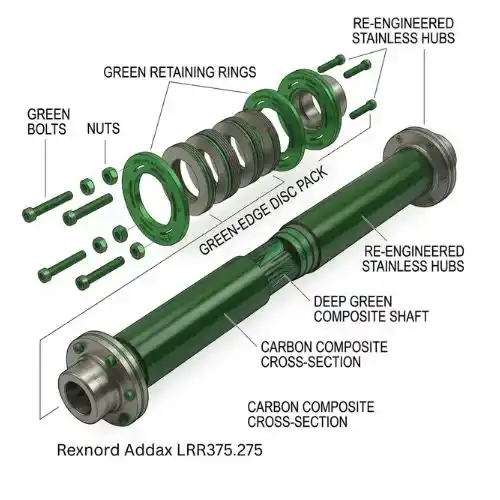

- Carbon fiber center tube provides exceptional stiffness and long-span capability
- Lightweight composite construction reduces motor and gearbox bearing loads
- Unitized composite flex elements eliminate fretting corrosion and lubrication needs
- 316 stainless steel hardware delivers strong corrosion resistance in humid environments
- High misalignment tolerance supports up to 1° angular movement per shaft end
- Dynamically balanced to ANSI/AGMA 9000-C90 Class 9 standards
- Infinite fatigue-life composite design improves long-term operational reliability
It is engineered for stable power transmission and reliable cooling tower operation under demanding industrial load conditions.
- Model: LRR375.275
- Coupling size: 375.275
- Coupling style: Long span
- Coupling type: Composite
- Maximum horsepower @ 1800 RPM (2.0 SF): 75 HP
- Maximum horsepower @ 1500 RPM (2.0 SF): 62 HP
- Continuous torque rating: 2,660 in-lb
- Peak torque rating: 7,967 in-lb
- Maximum DBSE @ 1800 RPM: 114 in (2,896 mm)
- Maximum DBSE @ 1500 RPM: 126 in (3,200 mm)
- Distance between shaft ends: 95 in
- Maximum operating speed: 1800 RPM
- Balanced speed rating: 1800 RPM
- Operational angular misalignment capacity: 1°
- Operational axial misalignment capacity: 0.02 in
- Bore capacity: Up to 5.06 in (130 mm)
- Hub straight bore diameter (Hub 1): 0.615 in
- Hub straight bore diameter (Hub 2): 2.38 in
- Spacer length: 93.92 in
- Overall coupling length: 100.2 in
- Major coupling outside diameter: 5.25 in
- Hub barrel outside diameter (Hub 1): 4 in
- Hub barrel outside diameter (Hub 2): 3.06 in
- Hub length (Hub 1): 2.6 in
- Hub length (Hub 2): 1.81 in
- Disc pack material: Composite
- Hardware material: 316 stainless steel
- Hub material: Stainless steel
- Moment of inertia: 32 lb-in²
- Inertia change per additional inch: 0.13 lb-in²
- Dynamic balance: ANSI/AGMA 9000-C90 Class 9 compliant
