Ensure stable power transmission in compact cooling tower systems with a lightweight coupling designed for reduced mechanical stress.
- Lightweight composite structure reduces overhung bearing loads
- Patented 6-bolt flex disc eliminates fretting corrosion and maintenance issues
- High vibration and shock damping protect drivetrain components
- Precision dynamic balancing ensures smooth operation
- Designed for compact-to-medium cooling tower spans
- Engineered for continuous industrial duty performance
Each specification reflects tested capability designed to support real-world cooling tower performance demands.

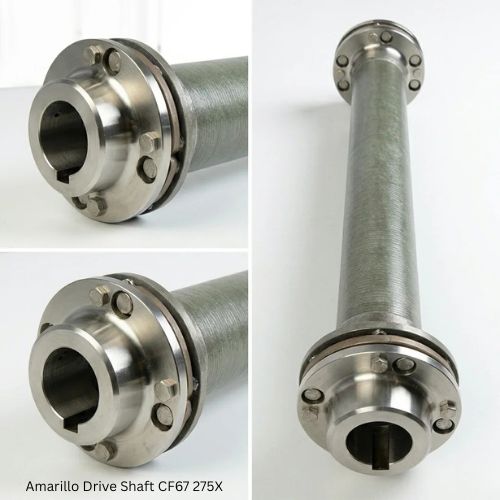

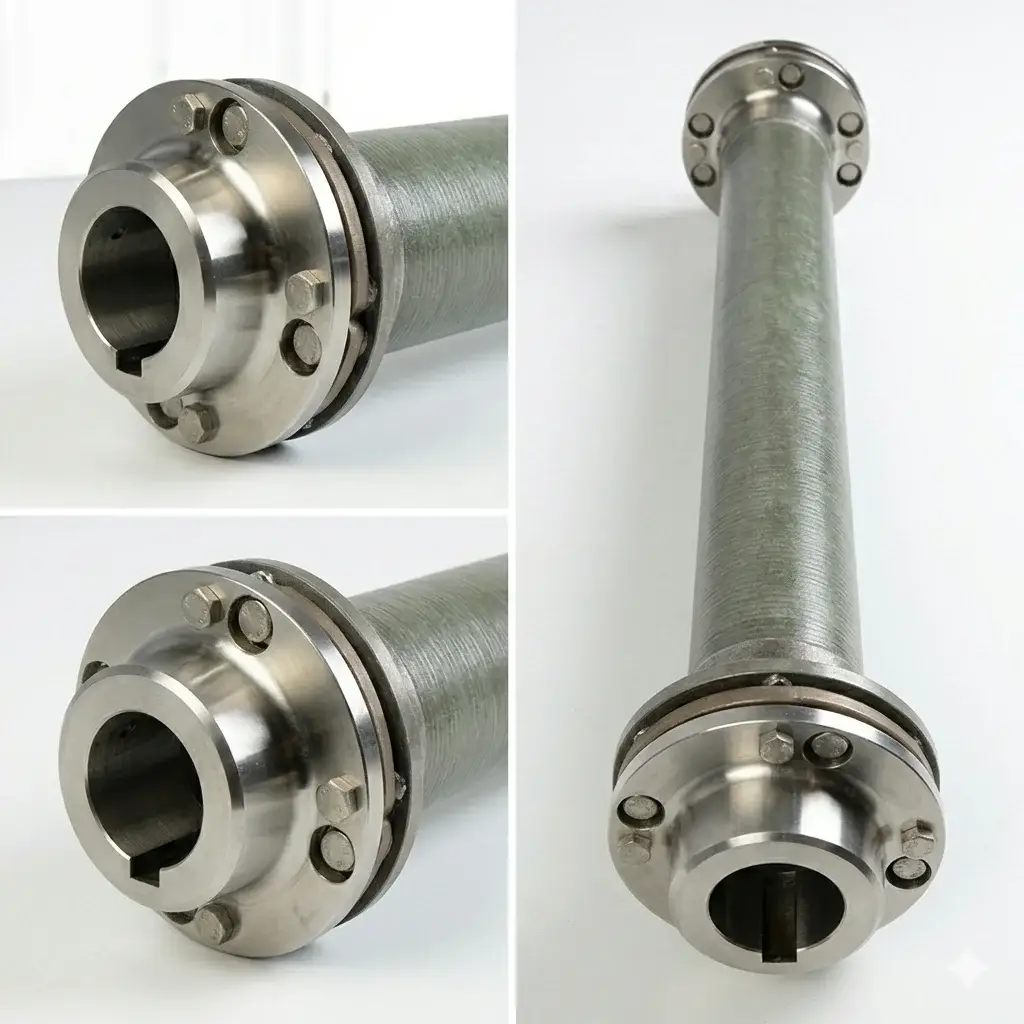

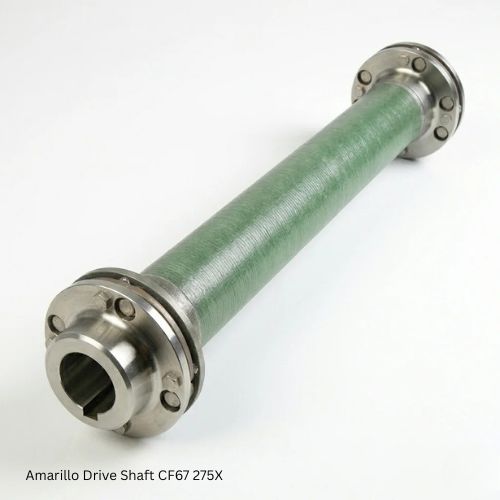

- Model: CF67 275X
- Maximum horsepower: 106 HP (79 kW) @ 1,800 RPM (2.0 service factor)
- Maximum DBSE (span): 77 in (1,950 mm) @ 1,800 RPM / 84 in @ 1,500 RPM
- Continuous torque: 5,250 in-lb (593 Nm) (2.0 service factor)
- Peak overload torque: 21,000 in-lb (2,374 Nm)
- Flex disc configuration: 6-bolt composite flex disc system (orange coded)
- Flex disc outer diameter: 6.75 in (171 mm)
- Bore range: 1.56 in (40 mm) to 3.00 in (76 mm)
- Maximum hub bore: up to 3.375 in (90 mm)
- Assembly weight: approx. 43 lbs at max DBSE @ 1,800 RPM
- Dynamic balance: AGMA 9000-C90 Class 9 compliant
