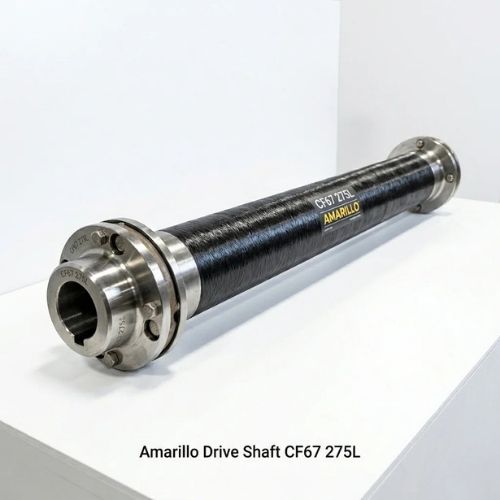

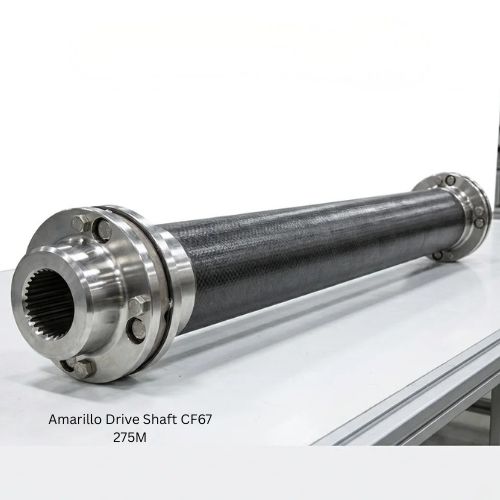

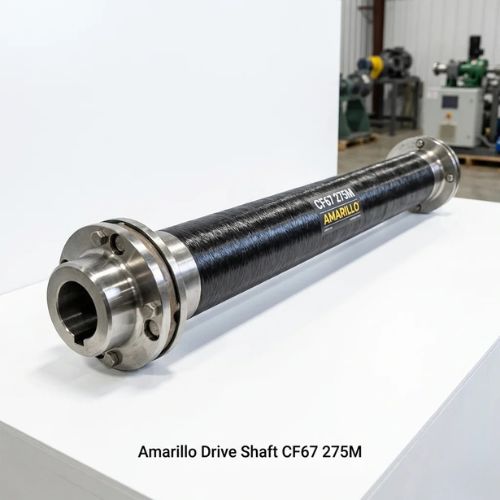

This coupling is built to maintain stability while reducing mechanical stress across the drivetrain.
It also improves operational consistency by minimizing wear on connected components during long-duty cycles.
- 6-bolt orange-coded patented flex disc reduces fretting corrosion
- Allows up to 1° angular misalignment per flex disc
- Composite center section reduces vibration and shock loads
- 316 stainless steel hubs and hardware for corrosion resistance
- High strength-to-weight design reduces bearing and motor load
- Dynamically balanced to AGMA 9000-C90 Class 9 standards
- Tested at 4× continuous operating torque before shipment
Each specification reflects performance validation under real industrial operating conditions.
It ensures consistent efficiency across varying cooling tower loads and speeds.
- Max HP Rating (2.0 SF): 106 HP @ 1,800 RPM / 88 HP @ 1,500 RPM
- Continuous Torque (2.0 SF): 3,750 in-lb (424 Nm)
- Peak Overload Torque: 15,000 in-lb (1,696 Nm)
- Max DBSE @ 1785 RPM: 77 in (1,955 mm)
- Max DBSE @ 1485 RPM: 84 in (2,130 mm)
- Max DBSE @ 1185 RPM: 93 in (2,360 mm)
- Flex Disc Configuration: 6-bolt, orange coded, 6.75 in (171 mm) OD
- Standard Bore Capacity: 1.56 in (40 mm) to 3.00 in (76 mm)
- Large Hub Bore Capacity: Up to 3.375 in (90 mm)
- Approx. Weight: 41 lbs (18.6 kg) at max DBSE @ 1,785 RPM
