This drive shaft ensures consistent torque transfer while maintaining smooth fan operation under continuous load. It also improves drivetrain durability by reducing stress on the motor, gearbox, and connected components.
- 6-bolt orange-coded patented composite flex disc eliminates fretting corrosion
- Composite center section provides superior vibration and shock damping
- Lightweight construction significantly reduces motor and gearbox load
- Dynamically balanced to AGMA 9000-C90 Class 9 standards
- Supports high misalignment tolerance up to 1.5° per shaft end
- Designed for long-span cooling tower drive applications
Each specification defines tested performance limits for real industrial cooling tower conditions. It ensures reliable operation even under variable loads and long operating cycles.

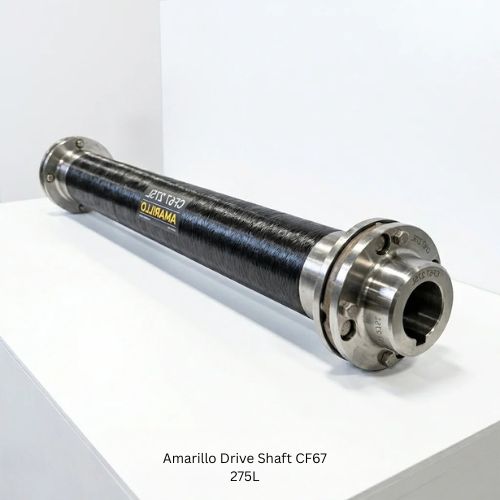

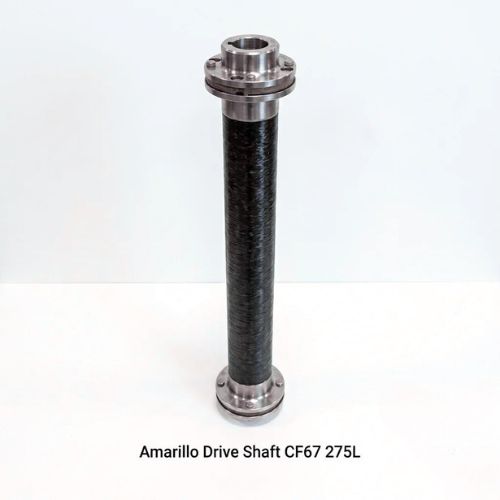

- Model: CF67 275L
- HP Rating @ 1800 RPM (2.0 SF): 106 HP (79 kW)
- HP Rating @ 1500 RPM (2.0 SF): 88 HP (66 kW)
- Continuous Torque (2.0 SF): 3,750 in-lb (424 Nm)
- Peak Overload Torque: 15,000 in-lb (1,696 Nm)
- Max DBSE @ 1785 RPM: 94 in (2,385 mm)
- Max DBSE @ 1485 RPM: 103 in (2,620 mm)
- Max DBSE @ 1185 RPM: 115 in (2,930 mm)
- Standard Bore Range: 1.56 in (40 mm) to 3.00 in (76 mm)
- Large Hub Bore Capacity: Up to 3.375 in (90 mm)
- Angular Misalignment: Up to 1.5° per shaft end
