Deliver smooth and reliable power transmission in cooling tower systems where stability and reduced mechanical stress are essential. This coupling is designed to maintain consistent performance across long spans.
- Lightweight composite construction reduces load on motor and gearbox bearings
- High vibration damping improves stability and extends equipment life
- Designed for long-span applications without intermediate support bearings
- Low-maintenance design eliminates frequent lubrication and surface treatment needs
- Factory-balanced for smooth and stable high-speed operation
Every parameter is derived from verified performance testing in real cooling tower conditions. The design maintains consistent efficiency under long spans, continuous load, and high-speed operation.

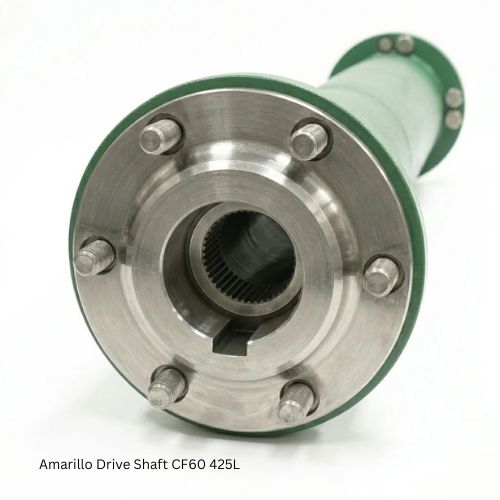

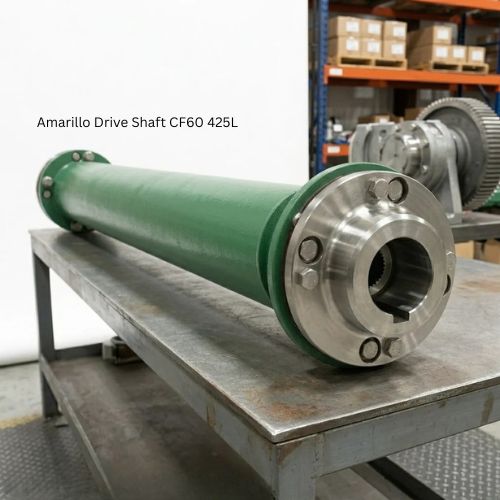

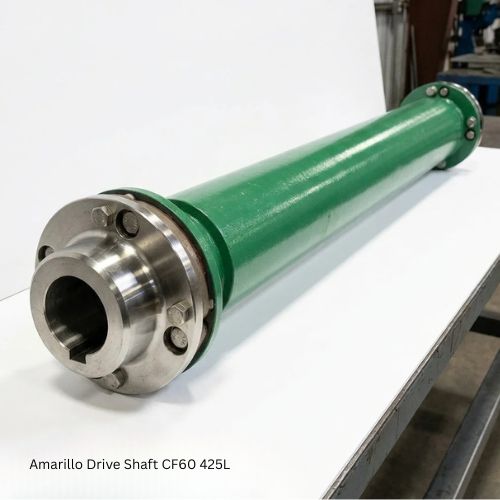

- Model: CF60 425L
- HP Rating @ 1800 RPM (2.0 SF): 90 HP (67 kW)
- Continuous Torque (2.0 SF): 3,175 in-lb (359 Nm)
- Peak Overload Torque: 12,700 in-lb (1,435 Nm)
- Max DBSE @ 1785 RPM: 122 in (3,090 mm)
- Max DBSE @ 1485 RPM: 133 in (3,380 mm)
- Max DBSE @ 1185 RPM: 149 in (3,790 mm)
- Flex Disc Outer Diameter: 6.00 in (152 mm)
- Standard Hub Max Bore: 2.375 in (60 mm)
- Large Hub Max Bore: 3.375 in (90 mm)
- Minimum Bore: 0.938 in (24 mm)
- Dim “A”: 4.25 in (108 mm)
- Dim “B”: 6.38 in (162 mm)
- Dim “C”: 2.44 in (62 mm)
- Assembly Weight (Max DBSE): 43 lb (19.5 kg)
- Assembly WR² (Inertia): 147 lb-in²
