Drive cooling tower systems with stable performance and reduced mechanical stress using a lightweight yet high-strength composite coupling.
- High-strength-to-weight composite design reduces bearing load and vibration
- 316 stainless steel hubs and hardware ensure strong corrosion resistance
- Patented composite flex disc eliminates fretting corrosion and reduces maintenance
- Precision dynamic balancing ensures smooth and stable operation
- High vibration and shock absorption protects gearbox and motor components
- Designed for medium-span cooling tower applications with stable alignment
- Tested for high torque performance and continuous industrial duty
Built for performance validation under real-world industrial stress, these specifications define its operational limits and capacity.

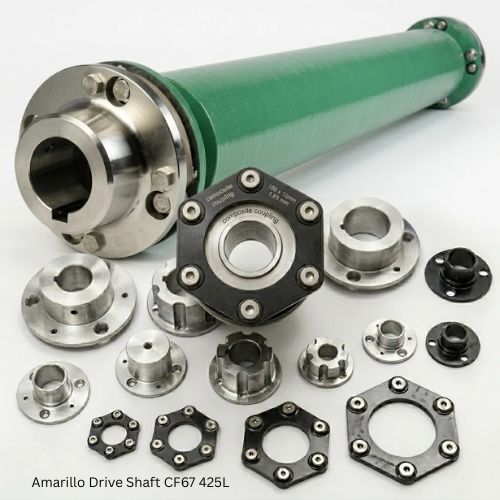

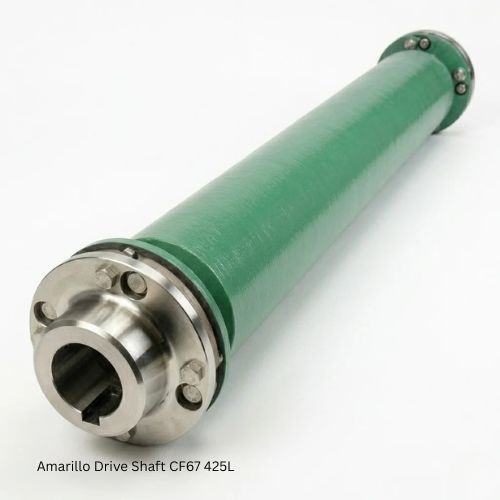

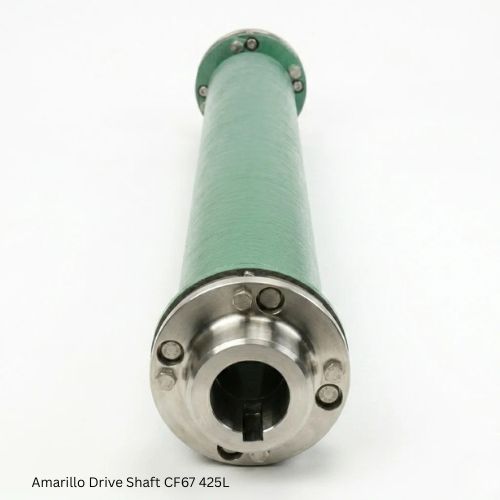

- Model: CF67 425L
- Maximum horsepower: 150 HP @ 1,800 RPM (2.0 service factor)
- Maximum DBSE (span): 122 in @ 1,800 RPM / 133 in @ 1,500 RPM
- Continuous torque: 5,250 in-lb (593 Nm)
- Peak overload torque: 21,000 in-lb (2,374 Nm)
- Flex disc configuration: 6-bolt composite flex disc system
- Flex disc outer diameter: 6.75 in (171 mm)
- Bore range: 1.56 in (40 mm) to 3.00 in (76 mm)
- Maximum hub bore: up to 3.375 in (90 mm)
- Material construction: 316 stainless steel hubs + composite spacer system
- Assembly weight: approx. 53 lbs (depending on span condition)
Dynamic balance: AGMA 9000-C90 Class 9 compliant
