Cooling towers represent a significant investment in industrial and commercial infrastructure. Their efficiency relies heavily on proper placement, yet many facilities overlook the critical nature of cooling tower clearance specifications. When these units lack adequate space, they suffer from recirculation issues, reduced thermal performance, and increased energy consumption. Furthermore, insufficient clearance can turn routine maintenance into a hazardous and costly ordeal.
This guide provides a comprehensive look at the spatial requirements necessary for optimal cooling tower operation. We will explore minimum spacing requirements, safety considerations, and the importance of access clearances for long-term reliability.
Whether planning a new installation or upgrading an existing system, understanding these parameters ensures compliance, safety, and peak efficiency.
Cooling Tower Clearance: Why It's Non-Negotiable
Space planning for new cooling towers goes beyond simply fitting equipment onto a concrete pad. It requires a holistic view of airflow dynamics, personnel safety, and long-term serviceability. Ignoring these factors during the design phase often leads to expensive retrofits or compromised system capacity later.
Incorrect spacing can lead to several detrimental outcomes:
- Poor performance: Recirculation of discharge air raises the wet-bulb temperature entering the tower, killing efficiency.
- Maintenance difficulties: If technicians cannot reach motors, fans, or fill media, routine care gets neglected.
- Safety hazards: lack of egress paths or proximity to electrical hazards endangers workers.
- Code violations: Local building codes and installation clearance codes dictate specific setbacks that, if ignored, can halt projects.
Understanding Cooling Tower Clearance Types
Many facility managers make the mistake of treating all clearance as the same, but distinct categories require specific attention. You must balance the need for fresh air intake with the need for human access and safety buffers.
Minimum Spacing Requirements
The most fundamental constraint is the minimum spacing requirements dictated by the manufacturer and local geography. Placing a tower too close to a solid wall starves it of air, creating a low-pressure zone that sucks exhaust air back into the inlet.
- Distance from buildings: Solid walls act as barriers to airflow and can reflect sound; manufacturers typically require a distance equal to the height of the air inlet.
- Distance from property lines: Zoning laws often require specific setbacks to prevent noise pollution or plume drift from affecting neighbors.
- Requirements for multiple-cell installations: When towers are grouped, they fight for the same air; spacing must account for this increased demand.
Access & Service Clearances
Operational efficiency means nothing if the equipment is impossible to service. Access clearances ensure that maintenance teams can perform their duties without contorting themselves or using unsafe climbing methods.
- Walk-around clearance for inspection: A minimum 3-foot perimeter is standard to allow visual inspection of the basin and casing.
- Door and ladder access clearances: Access doors must swing fully open without hitting piping or supports.
- Catwalk & platform space: Elevated towers need OSHA-compliant platforms with railings for safe motor and fan access.
Airflow Clearance
Airflow is the lifeblood of a cooling tower, and it requires an unobstructed path to function correctly. If the intake is blocked, the fan must work harder to pull air, increasing energy consumption and wear.
- Inlet side space for unrestricted airflow: The area in front of the louvers must remain clear of vegetation, walls, or other equipment.
- Outlet side distance to prevent recirculation: Discharge plumes need vertical space to disperse without hitting overhangs or being sucked back down.
- Relationship between clearance and thermal performance: Tighter clearances correlate directly with higher approach temperatures and reduced cooling capacity.
Safety Clearance
Safety clearances are non-negotiable zones designed to protect life and limb. These distances ensure that dangerous moving parts and high-voltage components remain isolated from general traffic.
Critical safety zones involve:
- Exclusion zones: Moving parts like fan blades and drive shafts require guarding and physical distance to prevent accidental contact.
- Electrical equipment: The National Electrical Code (NEC) mandates specific working space around control panels and disconnect switches, typically 36 inches or more.
- Official access: Inspectors and emergency responders need clear paths to the equipment without navigating through hazardous obstacles.
Standard Codes & Specifications Referenced
Building & Mechanical Codes
Regulatory bodies provide the baseline for what is legally acceptable in construction. These codes prioritize public safety and structural integrity over operational convenience.
- International Building Code (IBC): Sets standards for structural support, seismic bracing, and roof loads related to tower placement.
- ASHRAE standards: The American Society of Heating, Refrigerating, and Air-Conditioning Engineers provides guidelines for Legionella control and equipment siting.
- Local mechanical codes: Municipalities often have stricter noise and drift requirements than national standards.
Industry Best Practice References
Beyond the legal minimums, industry best practices guide you toward optimal performance. Manufacturers invest heavily in research to determine exactly how much space their specific models need.
- Cooling tower manufacturer guidelines: The technical manual for your specific model is the ultimate authority on required spacing.
- Industrial HVAC installation standards: These guidelines address complex piping and integration scenarios often found in process cooling.

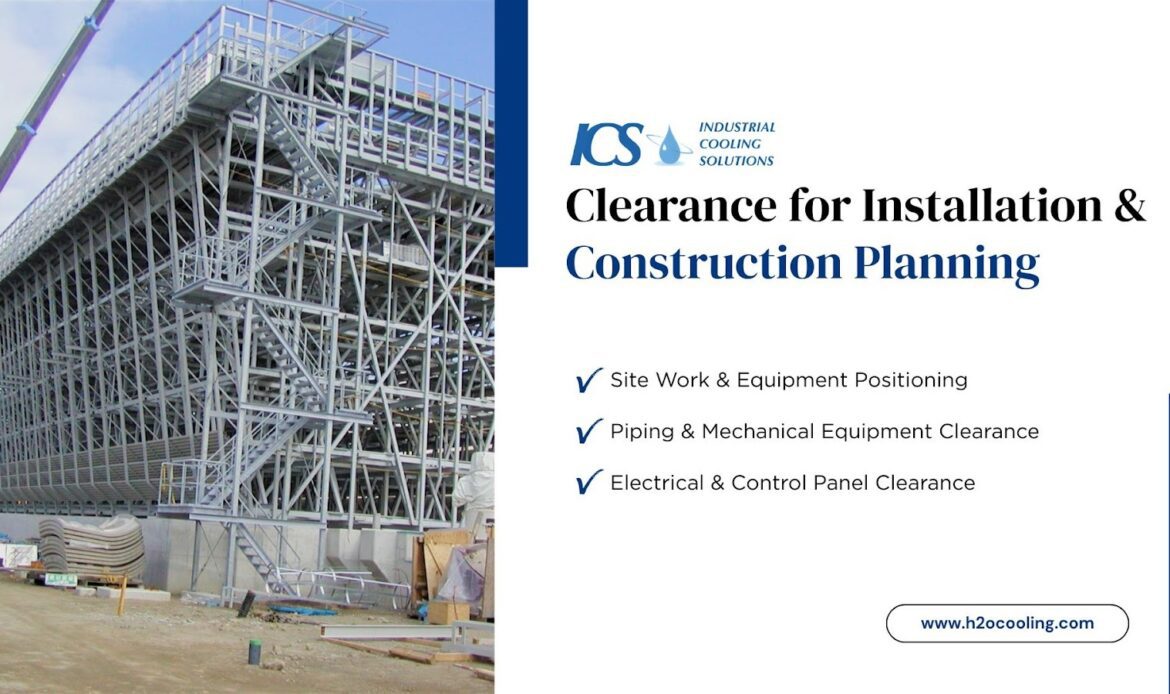

Clearance for Installation & Construction Planning
The physical act of installing a cooling tower requires significantly more space than the footprint of the unit itself. You must plan for the heavy machinery and logistics involved in setting up these massive components.
Site Work & Equipment Positioning
Before the tower arrives, the site must be prepared to receive it. This phase requires equipment separation distance planning to accommodate cranes and rigging crews.
- Setback from structures: Ensure the foundation is far enough from existing walls to allow for waterproofing and concrete formwork.
- Access for rigging/cranelarge-diameter operations: Large cranes need a wide swing radius and stable ground stability to lift tower sections safely.
Piping & Mechanical Equipment Clearance
Piping layouts often complicate clearance planning, as large-diameter pipes consume valuable ground space. You must ensure that the plumbing does not obstruct the service access doors or air inlets.
- Suction and discharge piping: Large diameter pipes require support structures and space for expansion loops.
- Pump and valve access: Isolation valves must be accessible by hand or chain wheel, not buried behind other equipment.
- Strainers: Water strainers require significant clearance to pull screens for cleaning.
Electrical & Control Panel Clearance
Electrical components require specific clearances for heat dissipation and safe interaction. Technicians need room to open panel doors fully and stand directly in front of them for testing.
- Service space for electrical panels: The NEC typically requires a clear working space of 30 inches wide and 36 inches deep in front of equipment.
- Lighting & safety access: Adequate lighting must be installed to illuminate these workspaces during night shifts or emergencies.
- Height clearance: A minimum headroom clearance of 6.5 feet is required to ensure safe and unobstructed access to electrical panels.
- Marking of hazardous areas: Areas near electrical panels must be clearly marked to prevent unauthorized access and to warn personnel of potential hazards.
Maintenance Space Planning Best Practices
Effective maintenance space planning transforms a difficult job into a manageable routine. When designers prioritize serviceability, they reduce the mean time to repair (MTTR) and extend equipment life.
Daily Service Access
Routine inspections should not require special equipment or acrobatic maneuvers. If a technician can easily walk up to the unit, they are more likely to catch small issues before they become major failures.
- Wide enough paths for ladders and lifts: Service roads or paths must accommodate the width of scissor lifts or boom lifts.
- Clearance from fill media for inspection: Technicians need to see the condition of the fill without dismantling the entire sidewall.
- Ensure paths are wide enough for ladders and lifts: Service roads and paths should accommodate the full width of necessary equipment, like scissor or boom lifts.
- Provide clearance from fill media for inspections: Technicians must be able to visually inspect the fill's condition without having to dismantle the sidewall.
Component Replacement Clearance
Eventually, major components like motors and gearboxes will fail and require replacement. You must plan for the physical space needed to extract these heavy items and bring in new ones.
- Fan motor replacement: A clear path must exist to lower a heavy motor to the ground or lift it out with a davit crane.
- Gearbox removal: Similar to motors, gearboxes are heavy and require overhead lifting space.
Safety & Rescue Access
In the worst-case scenario, an injured worker may need to be extracted from the tower area. Confined space rescue teams require specific dimensions to maneuver stretchers and medical gear.
- OSHA recommended rescue access space: Entry points must be large enough for rescue personnel wearing breathing apparatus.
- Clear paths free of tripping hazards: The area around the tower should be graded and free of piping obstacles to allow rapid evacuation.
Airflow Clearance and Performance Optimization
The relationship between space and aerodynamics is direct and unforgiving. Cooling tower clearance specifications are often driven by the need to maintain static pressure and prevent hot air recirculation.
Inlet Side Clearance Effects
When air inlets are too close to a wall, the air velocity increases, causing a pressure drop. This starves the fan and can cause cavitation or vibration issues.
- How inlet side clearance affects airflow pressure: Restricted inlets increase system static pressure, reducing total air volume (CFM).
- Outlet side spacing to prevent discharge recirculation: High discharge velocities are needed to punch through the boundary layer of stagnant air.
Impacts of Adjacent Structures
Nearby buildings can create wind tunnels or dead zones that disrupt the intended airflow pattern. ,
- How nearby structures can increase recirculation: Parapet walls, screens, or other barriers can trap the hot exhaust air, causing it to be drawn back into the fresh air intake. This significantly reduces cooling efficiency.
- Recommended clearance guidelines: A common rule of thumb is to ensure the distance from the tower to any adjacent wall is at least equal to the height of the air inlet itself.
Clearance Planning Tools and Techniques
Modern engineering provides sophisticated tools to validate cooling tower clearance specifications before concrete is ever poured. Utilizing these technologies reduces the risk of expensive field errors.
3D Modeling & BIM Use
Building Information Modeling (BIM) allows designers to visualize the tower in the context of the entire facility. This digital twin reveals clashes with piping or structure that 2D drawings might miss.
- Layout planning: BIM coordinates the exact placement of the tower relative to structural steel and piping racks.
- Virtual clearance validation: Designers can "walk through" the digital model to check access clearances for maintenance.
CFD (Computational Fluid Dynamics)
For complex installations, standard tables are not enough. CFD simulations model exactly how air moves through the site, revealing invisible recirculation loops.
- Airflow simulations: These models predict air velocity and pressure at the inlets based on site geometry.
- Impact on thermal and fluid dynamics: CFD validates that the proposed spacing will allow the tower to meet its thermal performance guarantee.
Laser Scanning & Survey Tools
When retrofitting a tower into an existing space, relying on outdated "as-built" drawings can be risky. Laser scanning offers a precise solution by capturing the exact reality of the site constraints. It provides accurate measurements, generating a detailed point cloud that reveals every conduit, beam, and pipe with millimeter-level precision.
Conclusion
Adhering to proper cooling tower clearance specifications is a complex but necessary part of system design. It requires balancing minimum spacing requirements for airflow with the practical needs of maintenance space planning. By respecting installation clearance codes and ensuring adequate equipment separation distance, you protect the efficiency of your system and the safety of your personnel.
Proper planning today prevents performance failures tomorrow. Whether you are using advanced CFD modeling or standard code references, the goal remains the same: create an environment where your cooling tower can breathe, and your team can work safely. For expert solutions tailored to your specific needs, visit the ICS website.
Frequently Asked Questions
What are standard cooling tower clearance specifications?
Most manufacturers recommend a minimum horizontal clearance equal to the height of the air inlet face on the intake sides. However, this varies by model and site conditions.
How far should a cooling tower be from a building wall?
A common rule of thumb is to maintain a distance of at least the height of the cooling tower, or specifically the air inlet height, to prevent recirculation and ensure adequate airflow.
What clearance is needed for maintenance access?
Maintenance space planning generally dictates a minimum of 3 to 4 feet around the perimeter for personnel, with larger clearances required for motor removal or coil access.
Do clearance requirements affect performance?
Yes, insufficient clearance restricts airflow and promotes recirculation of hot discharge air, both of which significantly reduce the tower's cooling capacity and energy efficiency.
Can CFD help determine optimal clearance?
Absolutely. Computational Fluid Dynamics (CFD) can simulate airflow patterns to identify potential recirculation issues and validate that the chosen installation clearance codes and spacing are sufficient for the specific site layout.
