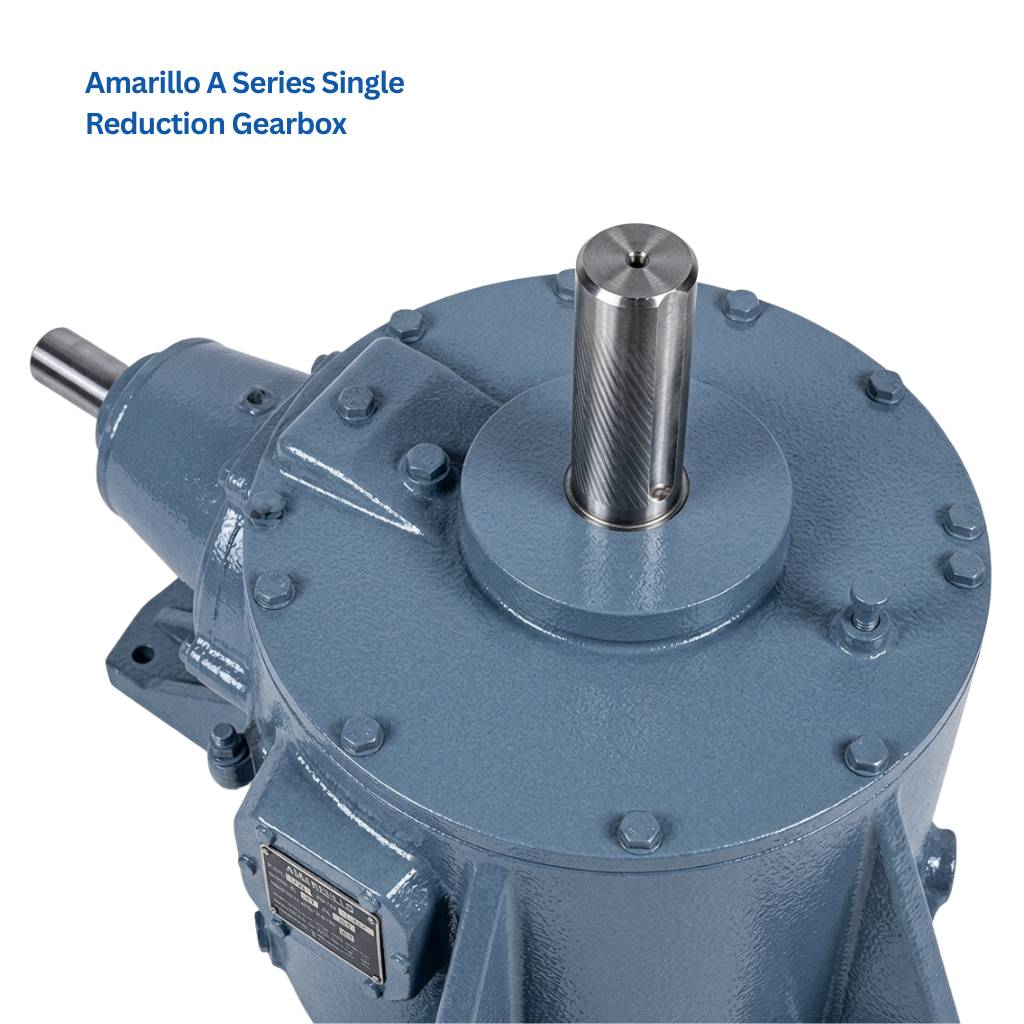

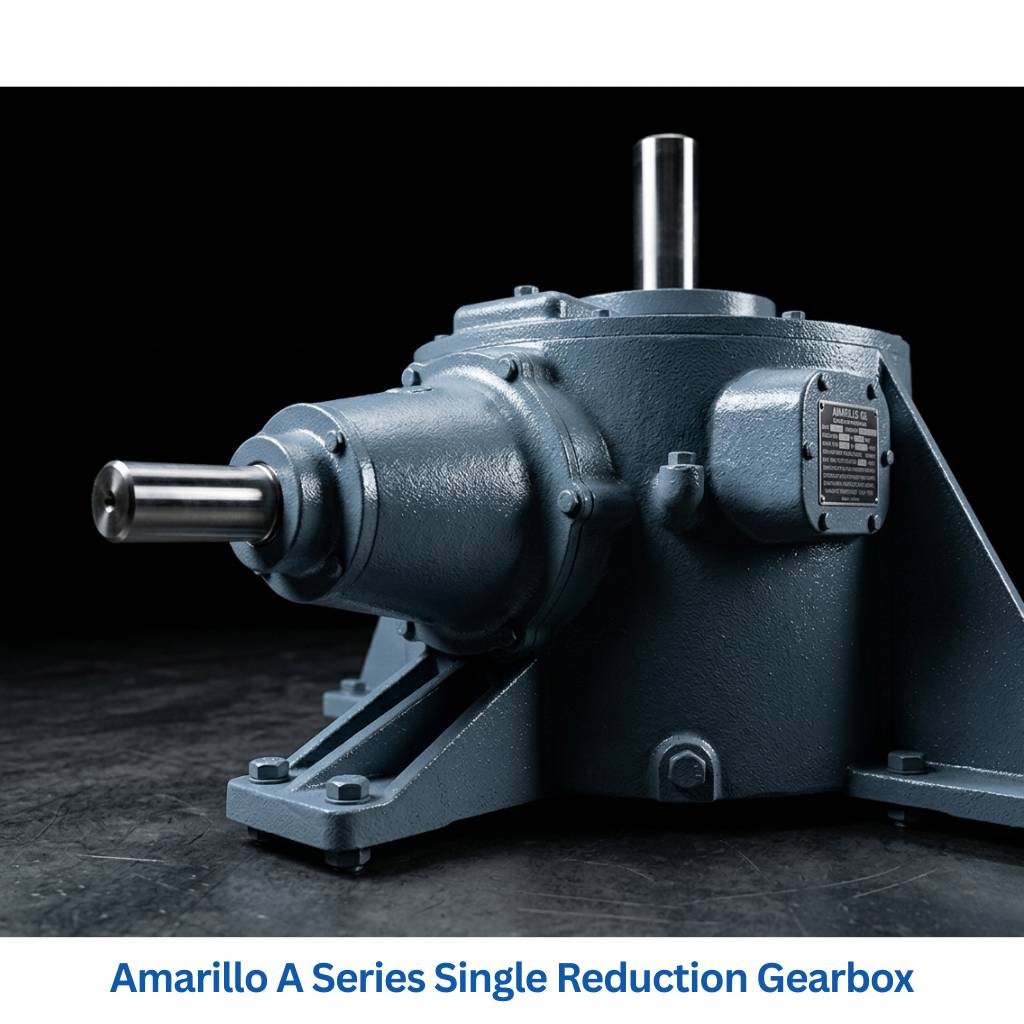

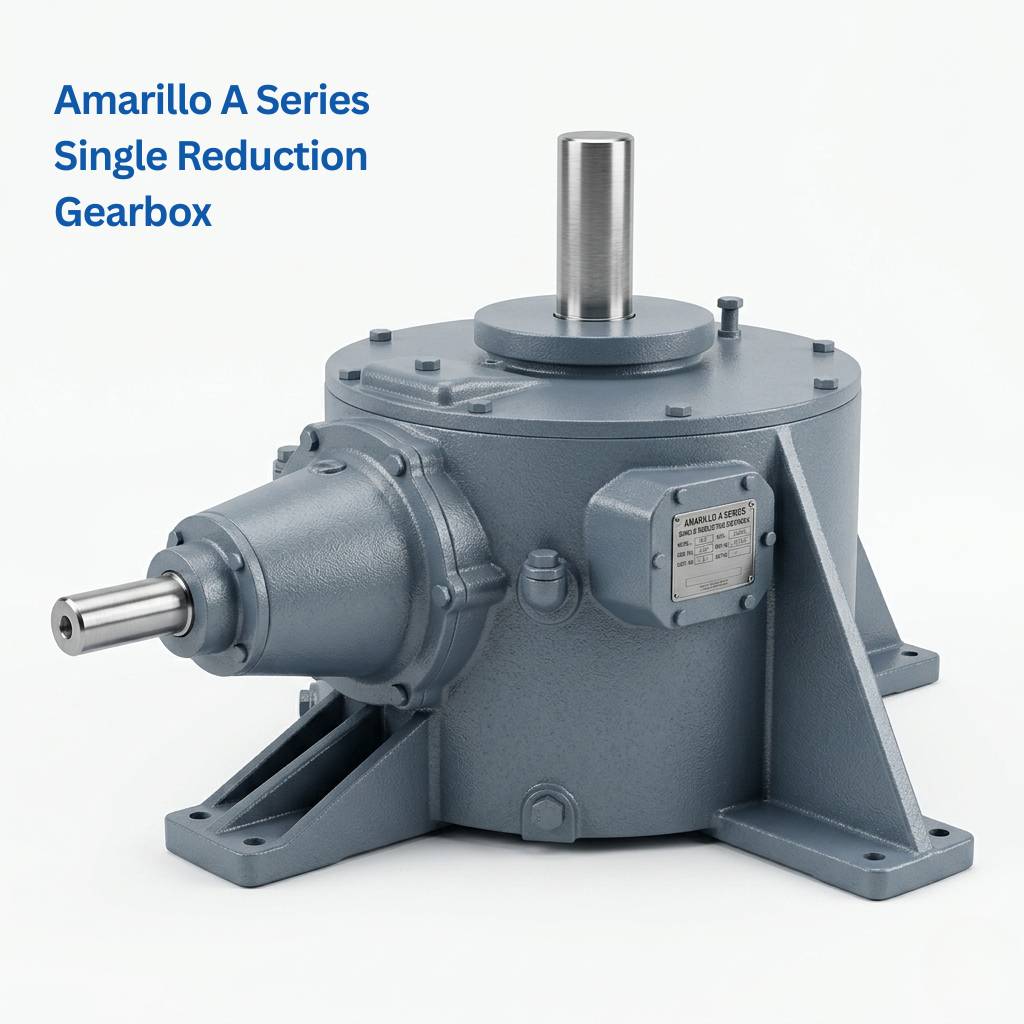

Amarillo A Series Single Reduction Gearbox

The Single Reduction “A” Series Gear Drives for cooling towers from Amarillo Gear Company are designed as direct replacements for the Marley® right angle gear boxes. Since there are no differences in the critical mounting dimensions, the “A” Series will make Marley® gear box replacements easy. “A” Series Single Reduction priced from $3,851.99 – $11,056.99.

Click for pricing, specs, features, and brochures.

  • Model A20
  • Model A22
  • Model A27
  • Model A32
  • Model A34
  • Model A36
  • Model A38/A40

Single Reduction “A” Series Gear Drive

The Single Reduction “A” Series Gear Drives for cooling towers from Amarillo Gear Company are designed as direct replacements for the Marley® right angle gear boxes. Since there are no differences in the critical mounting dimensions, the “A” Series will make Marley® gear box replacements easy. Gear housing foot patterns are identical, eliminating expensive gear drive mechanical support modifications.

The input shaft diameters and keyways are the same, so existing couplings and drive shafts do not have to be replaced. All service ports are also easily accessible. Reduction ratios are within ±2% of the Marley® gear box ratios, eliminating the need to make costly fan pitch adjustments.

Amarillo “A” Series Model replaces

Marley ®

A20
A22
A27

20, 20T, 1800, 2000*
22.1, 22.1T, 22.2, 22.3, 2200
27T, 27.1, 2700T*

*= Provide Amarillo Gear Company with dimensions of the input and output shafts for possible interchange modifications to the Amarillo “A” Series model selected.

Ratio Selection and Gear Drive Ratings

Ratio

All ratios shown in the catalog are reducing and defined as the ratio of the input speed to the output speed. Ratios shown are exact within ±2%. For your particular model and ratio, please contact the factory to confirm selection and availability.

Ratings

AGMA and CTI recommend a minimum service factor of 2.0 for gear drives in cooling tower fan service when driven by electric motors or steam turbines. All ratings are service ratings and include a 2.0 service factor unless otherwise noted. Ratings listed in the catalog are for 60 cycle electric motor speeds. Ratings for speeds less than 1,750 rpm are proportional to the rated speed. Contact the factory for recommendations when the driver speed exceeds 1800 rpm or falls below 450 rpm.

Direction of Rotation

Normal rotation is both shafts clockwise as shown in the illustrations in the catalog. Occasional use with both shafts rotating counterclockwise is permissible (unless the gear drive is equipped with Amarillo Gear’s optional non-reverse backstop).

Straight Output Shaft Information

All Amarillo Single Reduction “A” Series Gear Drives drives may be furnished, upon request, with a cylindrical output shaft (no-taper). Please contact factory for pricing and availability.

Amarillo Gear Company LLCRotational schemes with the shafts rotating in opposite directions are available on special order.

Other Output Shaft Selections

Marley® typically has offered up to three output shaft lengths for the Series 20, 22, 2000, and 2200. All typically feature a ½” per foot taper. They are noted as either Standard (which is generally the same as the Amarillo “A” Series standard catalog offering), Type CC (which is slightly extended in length), and Type CC2 (greatly extended in length). If you do not know which output shaft your gear box has, please complete the worksheet below and contact Amarillo Gear for proper selection or provide a certified dimensional print of your existing gear drive. A dimensional print of an Amarillo “A” Series drive with proper output shaft dimensions can be provided before ordering if requested.



Length of taper (D)________________ Keyway size (F)______________________

Small end diameter (E1)____________ Keyway parallel to centerline or taper_______

Large end diameter (E2)____________ Overall Height (C)_____________________



Amarillo Gear Company LLC

“A” Series Drives
Amarillo A Series – Operation & Maintenance Instructions

Product description

The Single Reduction “A” Series Gear Drives for cooling towers from Amarillo Gear Company are designed as direct replacements for the Marley® right angle gear boxes. Since there are no differences in the critical mounting dimensions, the “A” Series will make Marley® gear box replacements easy.
