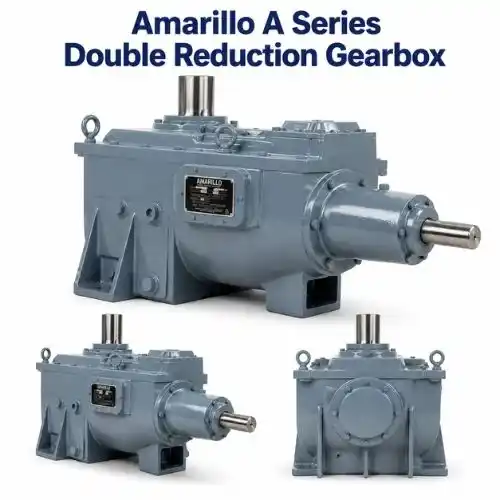

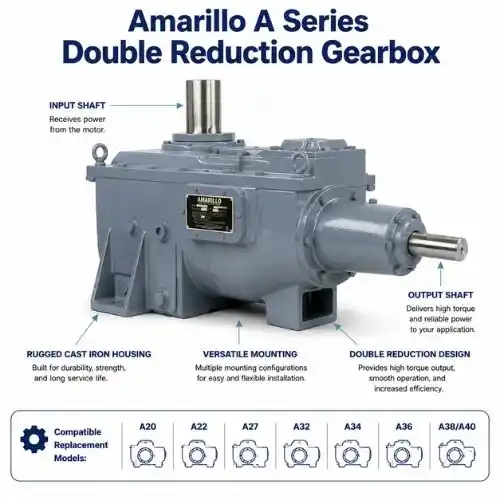

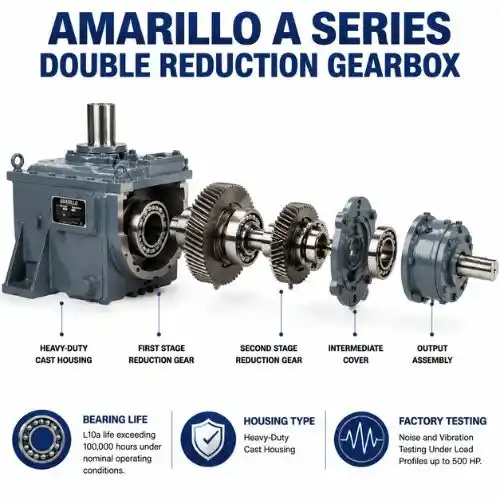

Amarillo A Series Double Reduction Gearbox

The Double Reduction “A” Series Gear Drives for cooling towers from Amarillo Gear Company are designed as direct replacements for the Marley® right angle gear boxes. Since there are no differences in the critical mounting dimensions, the “A” Series will make Marley® gear box replacements easy. “A” Series Double Reduction Gears priced from $20,011.99 – $35,781.99.

This Gearbox covers the following models:

  • Model A20
  • Model A22
  • Model A27
  • Model A32
  • Model A34
  • Model A36
  • Model A38/A40

Since there are no differences in the critical mounting dimensions, the “A” Series will make Marley® gear box replacements easy. Gear housing foot patterns are identical, eliminating expensive gear drive mechanical support modifications.

The input shaft diameters and keyways are the same, so existing couplings and drive shafts do not have to be replaced. All service ports are also easily accessible. Reduction ratios are within ± 2% of the Marley® gear box ratios, eliminating the need to make costly fan pitch adjustments.

Amarillo “A” Series Model replaces

Marley®

A32
A34
A36
A38

32, 32.1T, 32.2*, 3200*
34*, 34.1*, 34.2T*, 34.3T*, 34.4*, 3400*
36*, 3600*
38*, 3800*

*= Provide Amarillo Gear Company with dimensions of input and output shafts for possible interchange modifications to the Amarillo “A” series model selected. Please note that in some instances Marley® offers up to 4 different output shaft choices per model.

Ratio Selection and Gear Drive Ratings

Ratio

All ratios shown in the catalog are reducing and defined as the ratio of the input speed to the output speed. Ratios shown are exact within ±2%. For your particular model and ratio, please contact the factory to confirm selection and availability.

Ratings

AGMA and CTI recommend a minimum service factor of 2.0 for gear drives in cooling tower fan service when driven by electric motors or steam turbines. All ratings are service ratings and include a 2.0 service factor unless otherwise noted. Ratings listed in the catalog are for 60 cycle electric motor speeds. Ratings for speeds less than 1,750 rpm are proportional to the rated speed. Contact the factory for recommendations when the driver speed exceeds 1,800 rpm or falls below 450 rpm.

Direction of Rotation

Normal rotation is both shafts clockwise as shown in the illustrations in the catalog. Occasional use with both shafts rotating counterclockwise is permissible (unless the gear drive is equipped with Amarillo Gear’s optional non-reverse backstop).

Amarillo Gear Company LLC

Straight Output Shaft Information

All Amarillo “A” Series gear drives cooling tower drives may be furnished, upon request, with a cylindrical output shaft (no-taper). Please contact factory for pricing and availability.

Other Output Shaft Selections

Marley® has offered numerous output shaft lengths and at least 2 tapers (1/2” per foot and 3-1/2” per foot) on their double reduction models. If you do not know which output shaft your gear drive has, please complete the worksheet below and contact Amarillo Gear Company for proper selection or provide a certified dimensional print of your existing gear drive. A dimensional print of an Amarillo “A” Series gear drive with proper output and input shaft dimensions can be provided before ordering if requested.



Length of taper (D)________________ Keyway size (F)______________________

Small end diameter (E1)____________ Keyway parallel to centerline or taper_______

Large end diameter (E2)____________ Overall Height (C)_____________________



Amarillo Gear Company LLC



Other Options to Consider

Upon request, Amarillo Gear Company can equip your Amarillo “A” Series gear drive with non-reverse backstop, low oil level switch, oil heaters & thermostat, synthetic oil, drain valves, etc.

Series A Drives
Amarillo A Series – Operation & Maintenance Instructions

Product description

The Double Reduction “A” Series Gear Drives for cooling towers from Amarillo Gear Company are designed as direct replacements for the Marley® right angle gear boxes. Since there are no differences in the critical mounting dimensions, the “A” Series will make Marley® gear box replacements easy. “A” Series Double Reduction priced from $20,011.99 – $35,781.99.
